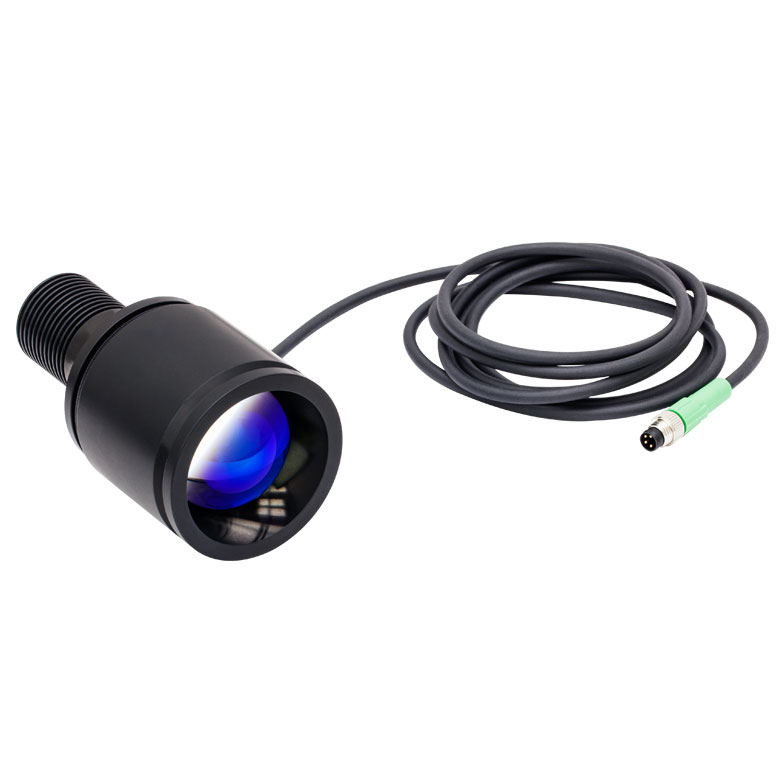

THORLABS M470L5-C1 Collimated LED (Blue; 470 nm; 487 mW; 50 mm; Olympus BX and IX)
Manufacturer: THORLABS Model: M470L5-C1 - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Color: Blue
Nominal Wavelength(a): 470 nm
Bandwidth (FWHM)(b): 28 nm
Emitter Size: 1 mm x 1 mm
Maximum Current (CW)(b): 1000 mA
Forward Voltage(b) :3.8 V
Electrical Power(b): 3820 mW
Typical Lifetime(b): >100 000 h
Operating Temperature (Non-Condensing: 0 to 40 °C
Storage Temperature: -40 to 70 °C
Risk Group(c): RG3 – High Risk Group
Cable Length: 2 m
***a. Value is approximate
b. Measured at 25 °C
c. According to the Standard IEC 62471:2006, Photobiological Safety of Lamps and Lamp Systems
Total Beam Power(a,b): 487 mW
Beam Diameter(a): 50 mm
Compatible Microscopes: Olympus BX and IX
***a. Values are approximate
b. Measured at Maximum Current
