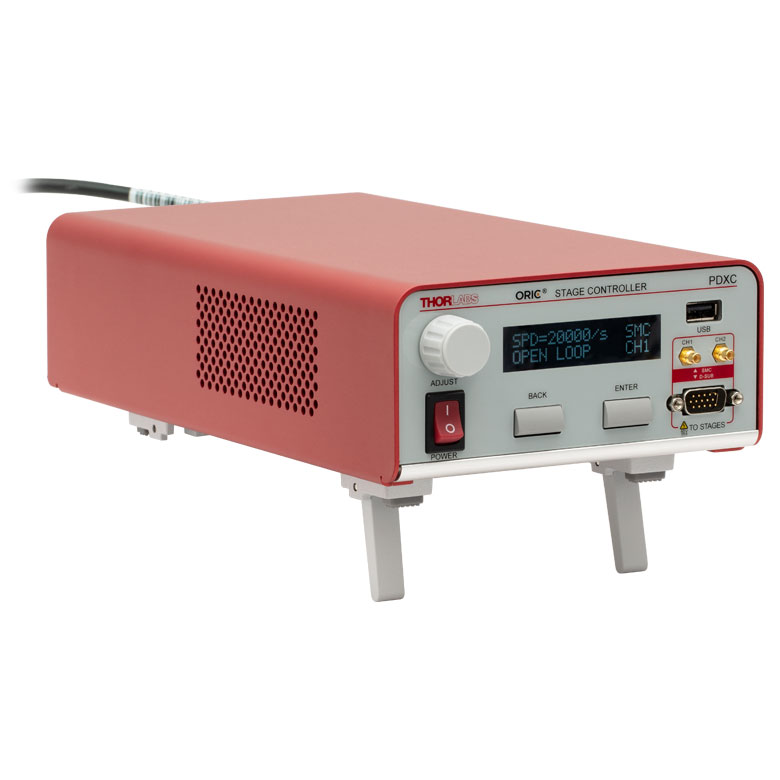

THORLABS PDXC ORIC Piezo Inertia Stage Controller

Performance Specifications(a)

SMC Port

- Number of Ports: Two

- Voltage: 0 to 40 V

- Frequency: 20 kHz Max

D-Sub Port

- Number of Ports: One

- Voltage: -10 to 50 V

- Frequency: 20 kHz Max

Max Current Limit: 10 A

Front USB: Type A, USB Host 2.0

Back USB: Type B, USB Device 2.0

I/O Port

- Voltage of Analog In/Out: -10 to 10 V, ±2%

- Voltage of Trigger In/Out: 0 to 5 V, TTL

Daisy Chain Ports: Two RJ-45 Ports

Dimensions (L x W x H): 314.2 mm x 150.0 mm x 84.3 mm (12.37” x 5.91” x 3.32”)

Weight: 5 kg

Operating Temperature: 10 - 35°C

Input Power: 100 - 240 VAC, 50 - 60 Hz

Compatible Stages: PDX1(/M), PD2(/M), PD1(/M)(b), PD1V(/M)(b), PD1D(/M)(b), PD3(/M)(c), PDR1(/M)(b), PDR1V(/M)(b)

(a) For complete information on all the ports, please see the manual.

(b) The PDXC operates at higher frequencies but outputs a lower maximum voltage than the KIMx01 controllers. It will drive the PD1(/M), PD1V(/M), PD1D(/M), PDR1(/M), and PDR1V(/M) stages at a higher speed with a smaller step size and lower driving force/torque.

(c) The PDXC operates at higher frequencies but outputs a lower maximum voltage than the KIMx01 controllers. It will drive the PD3(/M) stage at a higher speed with a smaller step size and lower driving force.
