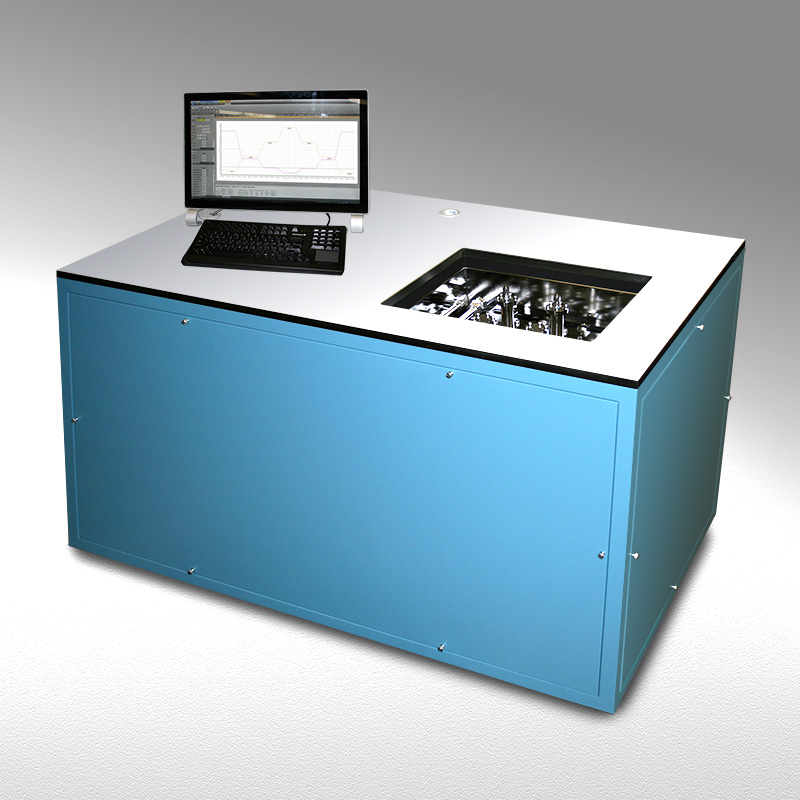

Thunder Scientific 9500 Automated “Two-Pressure” Humidity Generation System (5 ~ 98 %RH, 0 ~ 72 °C)

SPECIFICATIONS

Relative Humidity Range (Test Chamber @ 14.7 psiA) 5 to 98 %RH

Dew Point Temperature Range (Test Chamber @ 14.7 psiA) –35 to 70 °C

Frost Point Temperature Range (Test Chamber @ 14.7 psiA) –32 to 0 °C

Bath Temperature Range: 0 to 72 °C

Bath Temperature Control Stability: 0.002 °C

Bath Temperature Heating Rate: from 0 to 72 °C 0.5 °C per Minute (average)

Bath Temperature Cooling Rate: from 72 to 0 °C 0.5 °C per Minute (average)

Chamber Temperature Uniformity: 0.008 °C

Gas Type: Air or Nitrogen

Gas Pressure Rating: (MAWP) 350 psiG

Gas Flow Rate Range: 10 to 100 L/min

Gas Flow Rate Specification: ±2% of full Scale

Supply Pressure Specification: ±1.25 psiG

Saturation Pressure - Low Range: Ambient to 45 psiA

Saturation Pressure - High Range: 45 to 325 psiA

Test Chamber Pressure Range: Ambient to 15 psiA

Display Resolution: 0.001

Test Chamber Dimensions: 12" H x 12" W x 12" D (30.5 cm x 30.5 cm x 30.5 cm)

Physical Dimensions: 38.25” H x 60” W x 36” D (97.15 cm x 152.4 cm x 91.44 cm)

UNCERTAINTY

Relative Humidity: 5 to 98 %RH, 10 to 100 L/min 0.17% * R + 0.016

Example 1: If the %RH reading is 50 %RH, the uncertainty would then be: 0.17% * 50 + 0.016 = 0.101

Example 2: If the %RH reading is 10 %RH, the uncertainty would then be: 0.17% * 10 + 0.016 = 0.033

Dew Point: –27 to + 70 °C Dew Point (Ps <= 140 psiA), 10 to 100 L/min 0.03 °C

Dew Point: –35 to –27 °C Dew Point (Ps > 140 psiA), 10 to 100 L/min 0.05 °C

Frost Point: –22 to 0.01 °C Frost Point (Ps <= 100 psiA), 10 to 100 L/min 0.03 °C

Frost Point: –32 to –22 °C Frost Point (Ps > 100 psiA), 10 to 100 L/min 0.05 °C

Temperature: 0 to 72 °C 7 0.015 °C

Test Chamber Pressure: Ambient to 15 psiA 0.0021 psiA

Low-Range Saturation Pressure: Ambient to 45 psiA 0.0042 psiA

High-Range Saturation Pressure: 45 to 325 psiA 0.03 psiA

UTILITIES

Electrical Power: 200-220/208-230 V~, 50/60 Hz, 20 A, 3 Ø, 4 Wire

Gas Supply: 350 psiG @ 100 L/min

Cooling Water: 2 gpm (8 L/min) Maximum @ 21 °C

ENVIRONMENTAL

Operating Temperature: 15 to 30 °C

Storage Temperature: 0 to 50 °C

Humidity: 5 to 95% Non-condensing
