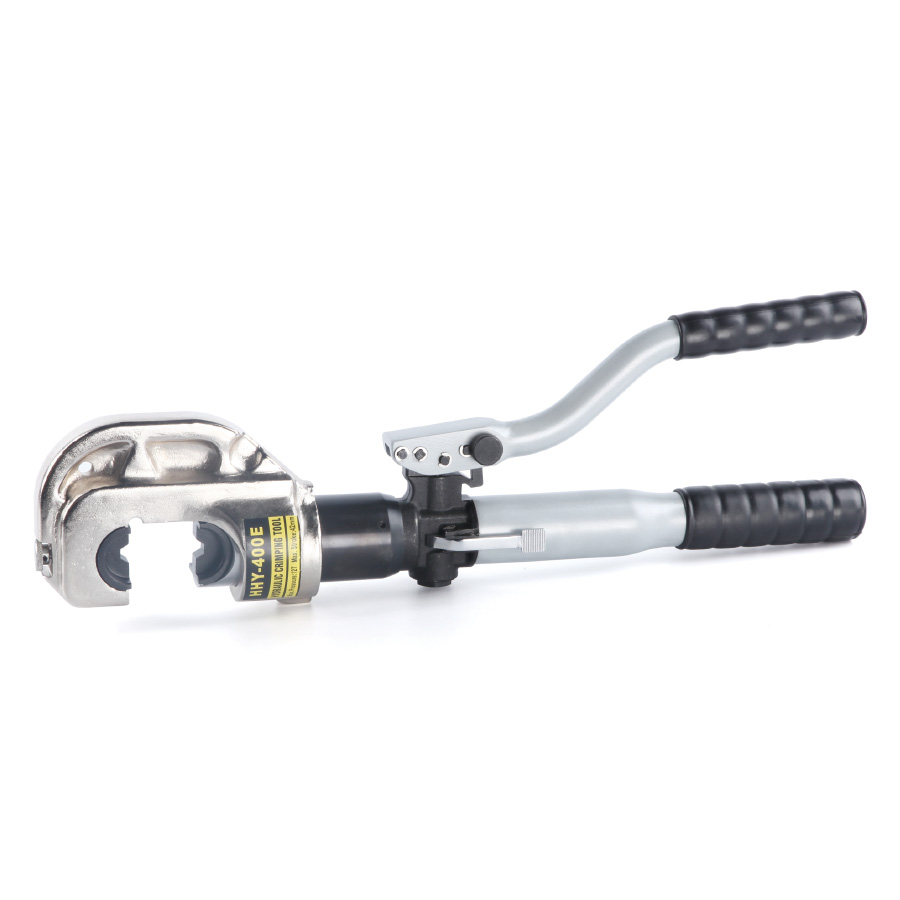

Hydraulic Ram Output: 11 Ton
Ram Stroke: 42 mm
Crimping Range (mm²): 16–400
Crimp Pattern: Hexagonal type
Crimping Dies (mm²): 50, 70, 95, 120, 150, 185, 240, 300, 400
G.W. (kg): 12.1
Packing Size (mm): 610 × 210 × 110
Characteristics:
Aluminum pump lever and housing result in low weight
C-head with large 42 mm opening width
Very large crimping range up to 400 mm2
Wide crimping
Built-in safety valve
●Open C crimping head with 42 mm width, rotatable.
●Large crimping area up to 400mm².
●Light weight due to high quality aluminum housing.
●Thanks to the automatic retraction function, poor crimps are avoided, more safety and shorter intervals between crimping operations.
●Manual release in case of need.
●The rotatable head permits to work in tight locations.
●Faster operation with less force thanks to the 2-stage hydraulic system.
●Sturdy steel storage box.
