Working pressure：700bar
Cylinder capacity: 10 ton
Number of stages: 3/2/1
Capacity @700 bar: 111 kN / 309 kN / 665 kN
Stroke per stage: 145 mm
Total stroke: 435 mm
Effective area: 15.9 cm² / 44.2 cm² / 95.0 cm²
Oil capacity: 2250 cm³

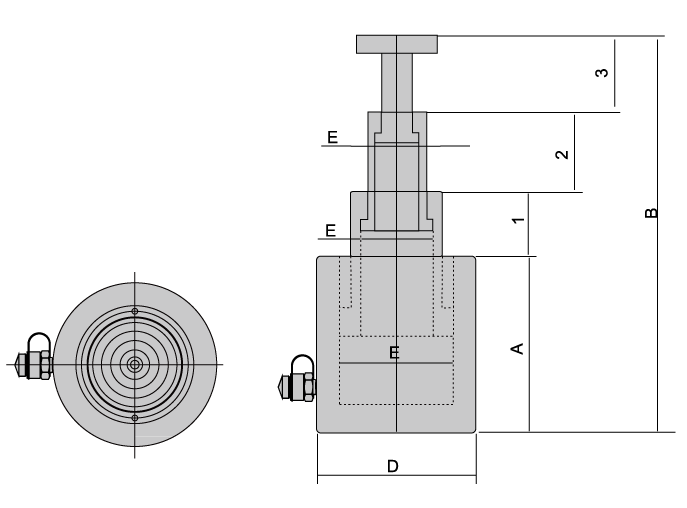

Closed height (A): 280 mm
Outside diameter (D): 153 mm
Inside diameter (E): 45 mm / 75 mm / 110 mm
Gross weight: 40 kg
Standard saddle diameter (J): 78 mm
Saddle protrusion from plunger (K): 19 mm
Handle: Eye bolts
Recommended pump: HHB-700A

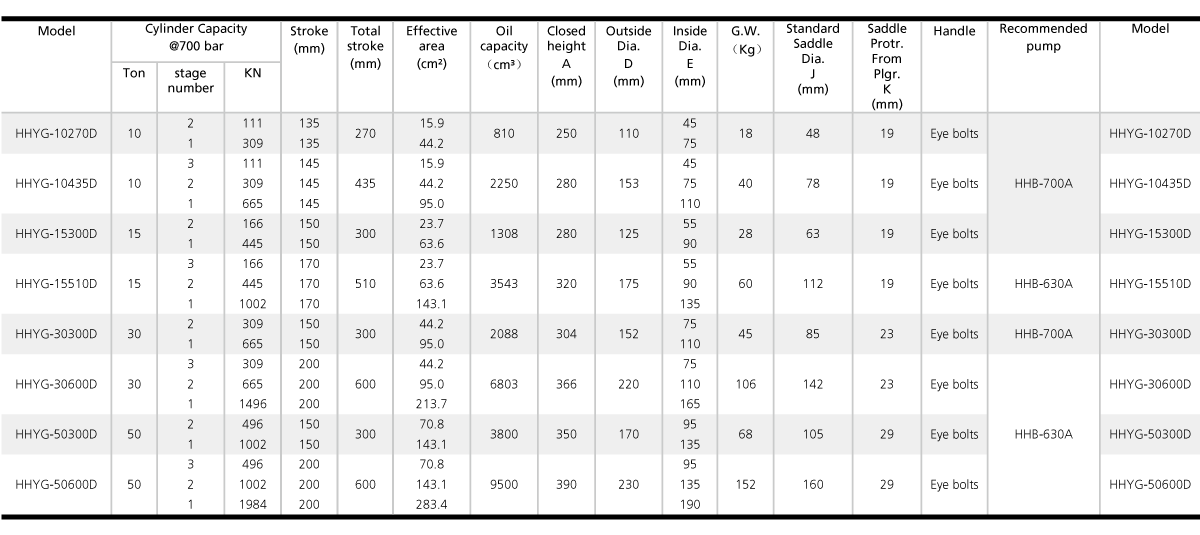

Parameters:
