Cylinder Capacity @700 bar (Ton): 300
Cylinder Capacity @700 bar (KN): 3165
Stroke (mm): 300
Effective area (cm²): 452.2
Oil capacity (cm³): 13572

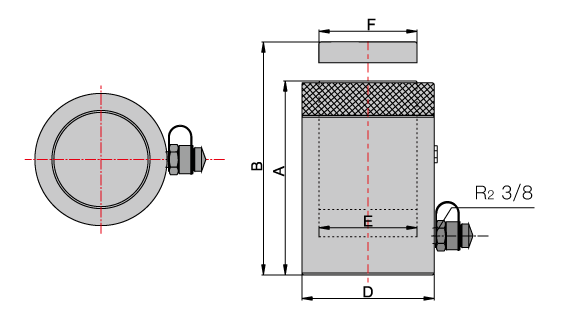

Closed height A (mm): 546
Extended height B (mm): 846
Outside Dia. D (mm): 285
Inside Dia. E (mm): 240
Piston Rod Dia. F (mm): 240
Locknut height (mm): 60
G.W (kg): 258
Handle: Eye Bolts
Recommended pump: HHB-630M

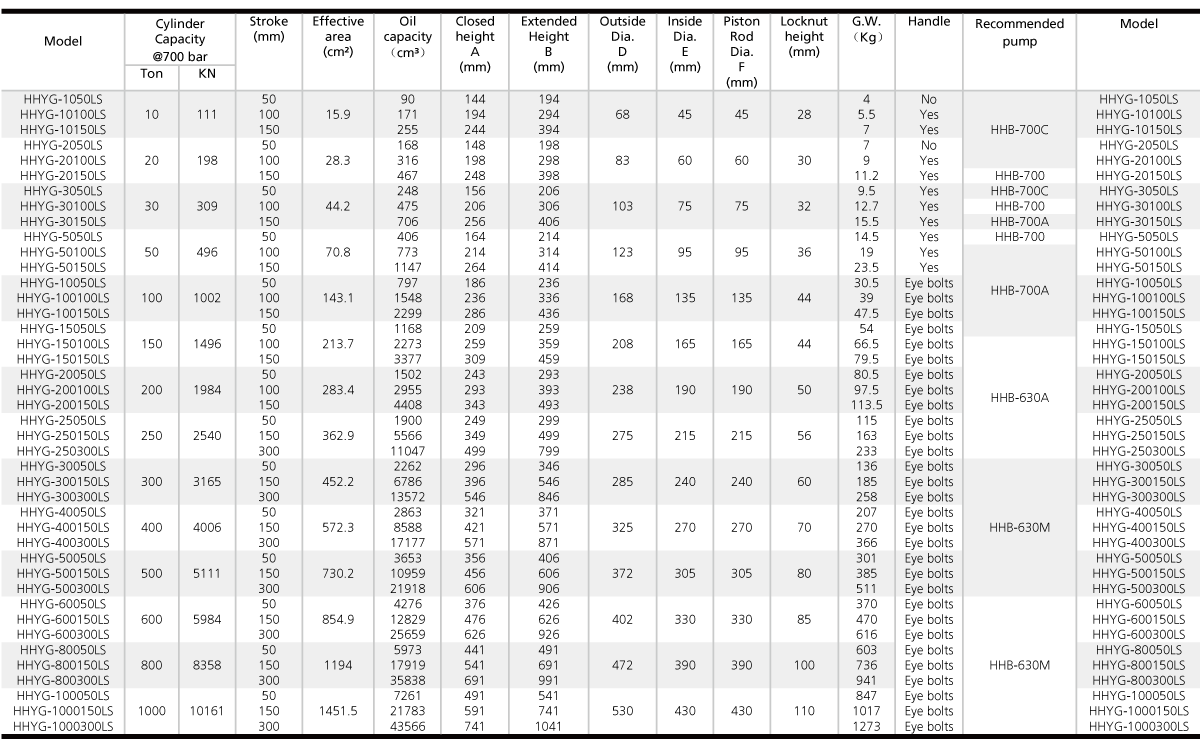

Parameters:
