Torque Range (lbf･in)
+ Min.～Max.: 1～5
+ Grad.: 0.05
Applicable Screw
+ Small ScrewM2.5, M3
+ Tapping Screw（M2.2）M2.5

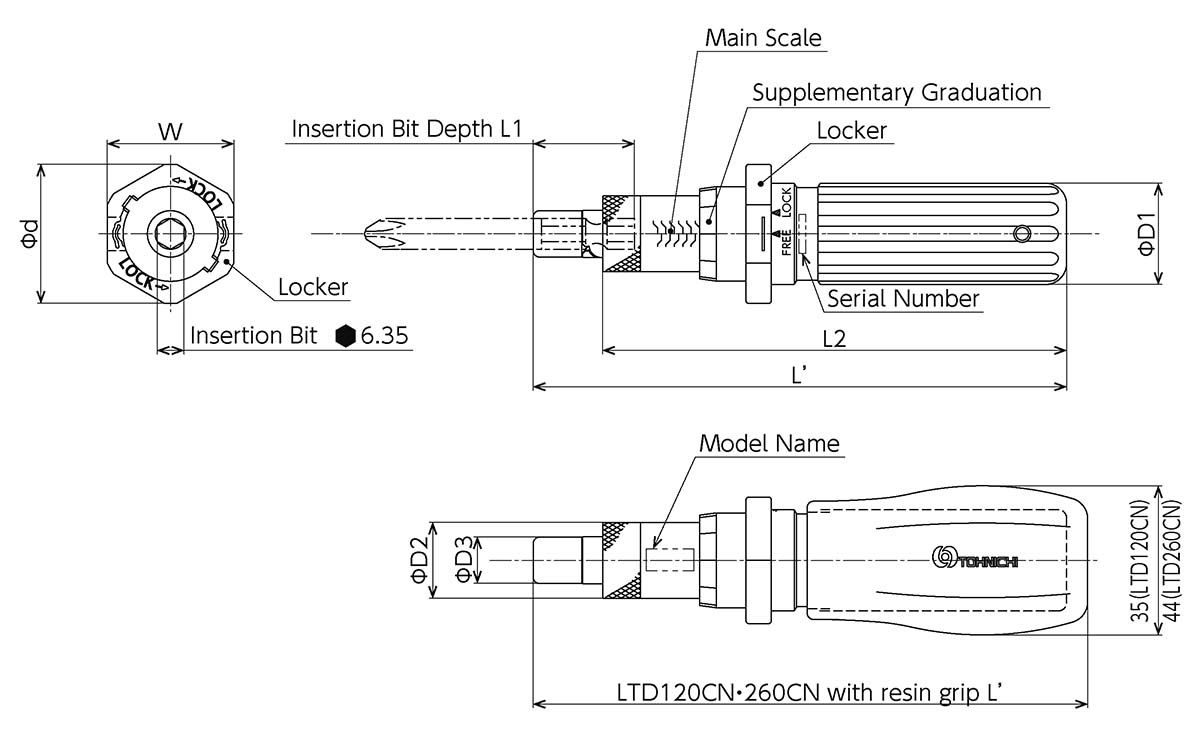

Dimension (mm)
+ Overall Length (L): 110
+ Grip (D1): 20
+ Body (D2): 14.8
+ Body (D3): 11
+ Body (L1): 24
+ Body (L2): 81.1～90.1
+ Locker (d): 29
+ Locker (W): 26.5
Weight [Kg]: 0.08
