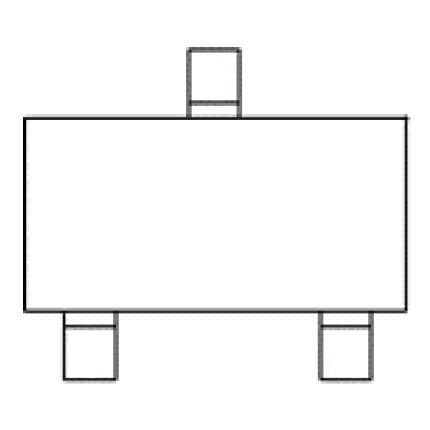

Torex Semiconductor XP264N0301TR-G MOSFETs General-purpose N-channel MOSFET , 60V / 0.3A / SOT-23
Manufacturer: Torex Semiconductor Model: XP264N0301TR-G - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Fall Time: 15 ns
Rise Time: 4 ns
Technology: Si
Unit Weight: 8 mg
Channel Mode: Enhancement
Configuration: Single
Mounting Style: SMD/SMT
Transistor Type: 1 N-Channel
Qg - Gate Charge: 720 pC
Number of Channels: 1 Channel
Transistor Polarity: N-Channel
Pd - Power Dissipation: 400 mW
Vgs - Gate-Source Voltage: - 20 V, + 20 V
Typical Turn-On Delay Time: 9 ns
Typical Turn-Off Delay Time: 35 ns
Id - Continuous Drain Current: 300 mA
Maximum Operating Temperature: + 150 C
Rds On - Drain-Source Resistance: 1.6 Ohms
Vds - Drain-Source Breakdown Voltage: 60 V
Vgs th - Gate-Source Threshold Voltage: 1.1 V
