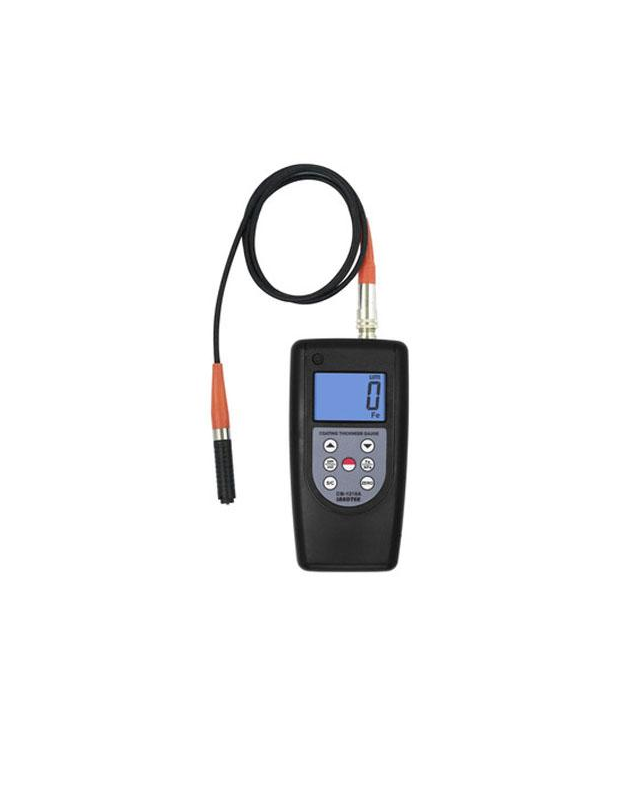

Total Meter CM-1210A Coating Thickness Gauge (0~5,000µm)

Principle: F Magnetic Induction & Eddy Current N

Measuring Range: 0~5,000µm / 0~200 mil

Resolution: 0.1

Accuracy: ± 1 ~ 3% n or ± 2.5

Minimum Radius of Curvature:

Type F: Convex 1.5 mm / Concave 25 mm

Type NF: Convex 3 mm / Concave 50 mm

Minimum Measuring Area: 6 mm

Minimum Thickness: 0.3 mm

Metric/Imperial: Yes

Function: Low Battery Indicator and Auto Power Off

Operating Conditions: Temperature: 0 ~ 40ºC, Humidity: 10 ~ 90% RH

Power Supply: 4x1.5V AAA Batteries (UM-4)

Dimensions: 140x72x34 mm

Weight: 215g (excluding batteries)
