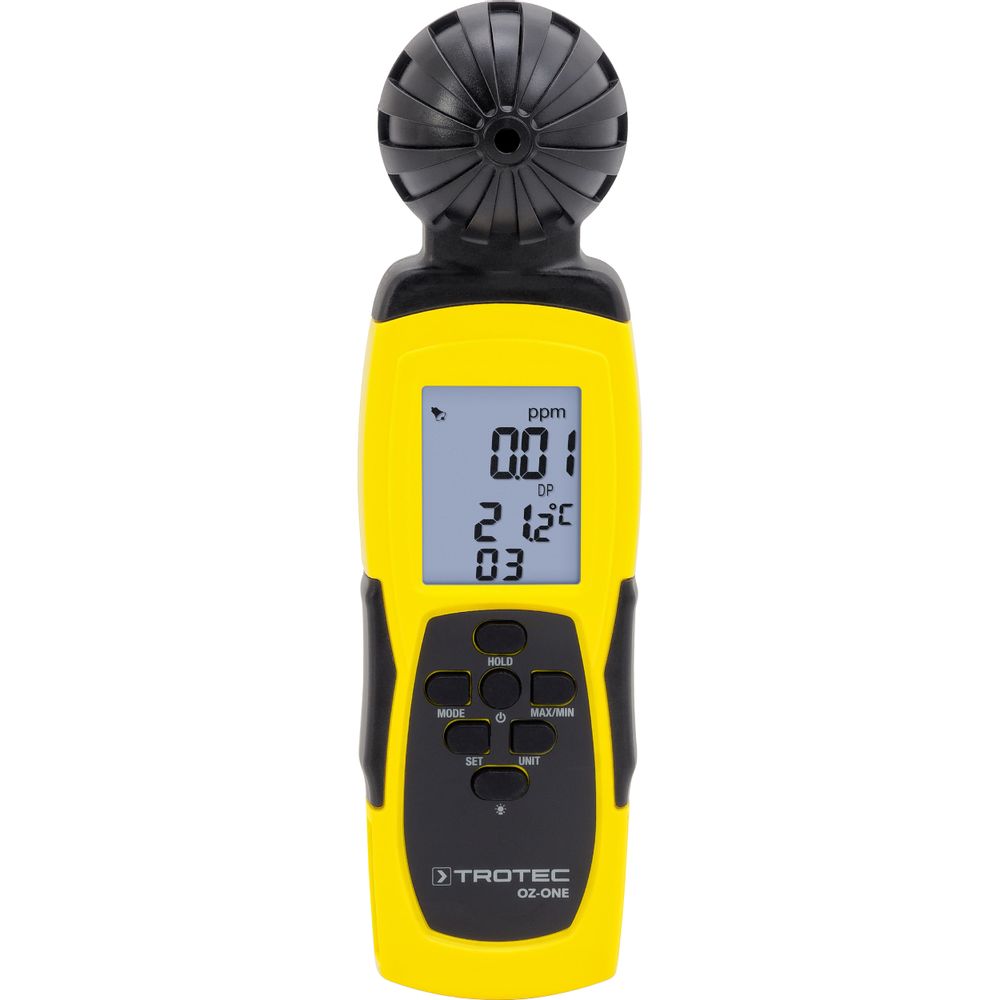

Trotec OZ-ONE Ozone Meter (0- 1 ppm [O3])

Weight: 185 g

Dimensions (length x width x height): 210 mm x 60 mm x 40 mm

Ozone concentration

Measuring principle: Electrochemical sensor

Measuring range: 0 to 1,996 μg/m3 (at 20 °C, 50 % RHand 1013 hPa)

Accuracy: < 0.1 ppm (< 200 μg/m³): ±0.02 ppm (±40 µg/m³) at 25 °C ; and 1013 hPa; otherwise ±10 %

Measuring range resolution: 1 µg/m3 or 0.01 ppm (10 ppb)

Drift: ±2 % / month*

Relative humidity

Measuring range: 0.0 % RH to 99.9 % RH

Accuracy: ± 3 % RH (at 10 % to 70 % and 25 °C); ± 5 % RH (0 % to 10 % and 70 % to 99.9 %)

Measuring range resolution: 0.1 %

Reaction time: 2 s

Operating conditions :0 °C to 50 °C, <80 % RH (noncondensing)

Storage conditions: -20 °C to 50 °C, <90 % RH (noncondensing)

Air temperature

Measuring range: 0 °C to 50 °C or 32 °F to 122 °F

Accuracy: ± 0.6 °C

Measuring range resolution: 0.1 °C

Automatic switch-off after: approx. 15 minutes

Power supply: 4 AAA batteries

Scope of delivery

• 1 x Device OZ-ONE

• 1 x Calibration certificate

• 4 x AAA batteries

• 1 x Quick guide

• 1 x Transport bag

Manual
