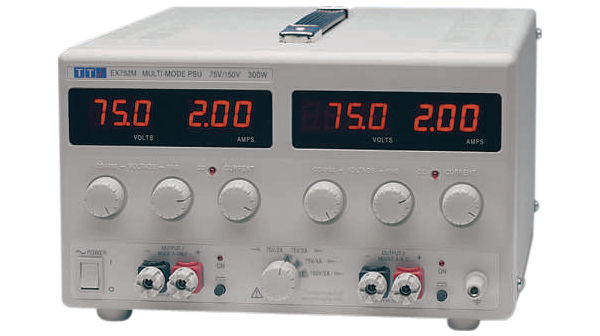

TTI EX752M Bench DC Power Supply (75V, 2A, 300W, 2 Channel)
Manufacturer: TTI Model: EX752M Origin: United Kingdom - Request a Quotation
- Request a Quotation
Price (exclude VAT) USD 928.14 Price (include VAT) USD 1,020.95 Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
EX752M
Electronic and mechanical specifications are as per EX354RD except as follows:
Voltage/Current Levels
EX752M 2 x (0 to >75V; 0 to >2A) (300W nominal power)
Multi-Mode Operation
Three modes of operation can be selected via a rotary switch:
Mode A: Two independent and isolated outputs (75V/2A each).
Mode B: One output of double the current capability (75V/4A).
(Unused output is disabled and its displays are blanked).
Mode C: One output of double the voltage capability (150V/2A).
(Unused output is disabled and its displays are blanked).
Metering
Display Type: 3 digit meters for voltage and current;
(4 digit on second voltmeter to maintain resolution above 100V).
Resolutions: 100mV; 10mA
Accuracy: Voltage - 0·3% of reading ± 1 digit,
Current - 0·6% of reading ± 1 digits
Output Performance
Ripple & Noise: Typically <2mv rms="" 15mv="" pk-pk="" cv="" mode="" 20mhz="" bandwidth="" br=""> Load Regulation: Modes A and B - <0·01%; Mode C - <0·1% + 2mV (90% load change)
Voltage Sensing
Voltage sensing is local only (i.e. no remote sense).
Output Protection
Output Protection: Outputs will withstand forward voltages up to 85V/170V.
Over-voltage trip operates above these levels.
Reverse protection by diode clamp for currents to 3A.
Output Terminals
High voltage touch-proof terminals
