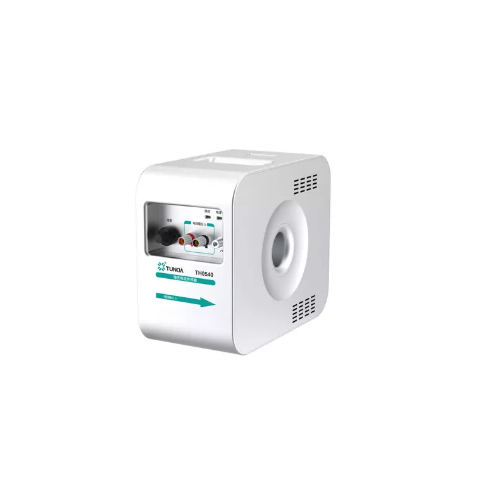

Tunkia TH0540 Precision Current Transducer (1k A, 1 A)
Manufacturer: Tunkia Model: TH0540 P/N: TH0540-T-1kA-1A - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
TH0540-T type ( through core type):
Primary Test Current (A): 1k
Secondary Output Current (A): 1
Accuracy at Different Frequencies (k=2, ppm):
DC: 5
45≤F≤200: 200
200<f≤1k: 500
1k<f≤5k: 1000
Current measurement range: (0~120%) * FS, supporting forward and reverse current measurement
General Specifications:
Power Supply: DC±15V，Lemo interface
Insulation performance: 50 Hz, 1 min, 2 kV
Temperature performance:
Working temperature：-20℃~55℃;
Storage temperature：-20℃~70℃
Humidity Performance:
Working humidity: 50% R•H，non-condensing
Storage humidity:<95%R•H，non-condensing
Length(mm): 172
depth(mm): 222
Height(mm): 76
Diameter of Ppen Window(mm): 54
Weight (kg): 3
