UE Systems Inc UP3000KT Digital ultrasonic leak detector

Ultraprobe® 3000 Specifications

Construction: Hand-held pistol type made with ABS plastic

Circuitry: Solid state analog and SMD digital circuitrywith temperature compensation

Frequency: Frequency response: 35-45 kHz

Response Time: <10 milliseconds

Display: 128x64 Graphic LED with LED backlight

Memory: 400 storage locations

Battery: Li Polymer Rechargeable

Operating Temp: 0 °C to 50 °C (32 °F to 122 °F)

Output(s): Calibrated heterodyned output, decibel (dB) frequency, USB data output

Available Probes: Scanning module and stethoscope (contact) module, long range module, RAS MT

Headset: Deluxe noise attenuating headphones. Over 23 dB of noise attenuation. Meets or exceeds specifications and OSHA standards

Indicators: dB, battery status and 16 segment bar graph, sensitivity setting, record number

Threshold: 1 x 10-2 std: cc/sec to 1 x 10-3 std. cc/sec

Dimensions: Complete kit in Zero Halliburton aluminum carrying case 38.1 x 55.9 x 11.43 cm (15” x 22” x 5”)

Weight: Pistol Unit: 0.45 kg (1 lbs); Carrying Case: 4.99 kg (11 lbs)

Warranty: 1 year standard, 5 years with completed registration form

Ultraprobe® 3000 Kit

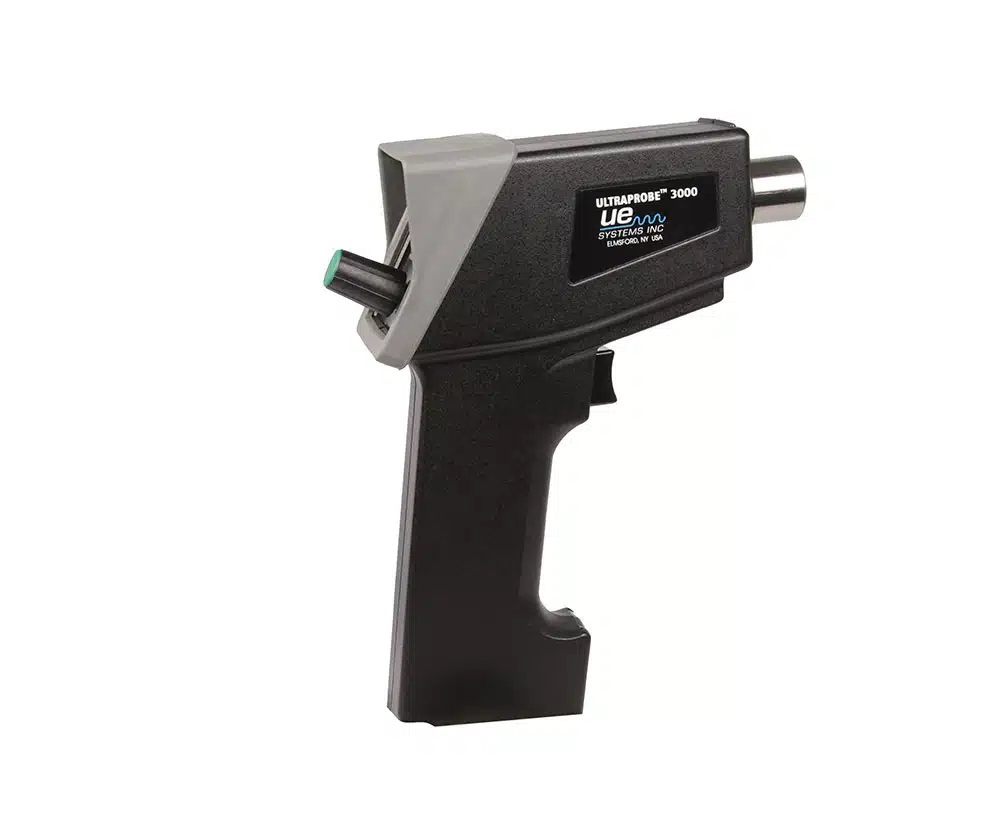

•  UP 3000 Pistol with Decibel Readout and

 16 Segment Bar Graph Display Panel

•  Spin and Click" Sensitivity/Control Dial

•  Scanning Module

•  Stethoscope (Contact) Module

•  Mini-USB I/O Port & Cable

•  Storage Entry

•  Recharge Jack

•  DHC-2HH-Heavyduty, Durable Headphones for Use With a Hard Hat

•  Zero Halliburton Carrying Case

•  Li Polymer Rechargeable Battery

and Charger

•  Rubber Focusing Probe

•  Stethoscope Extension Kit (SLP-EXT)
