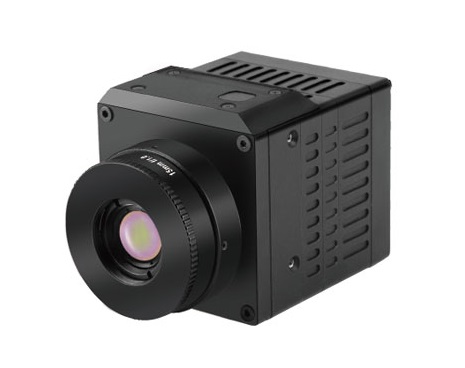

Ulirvision TI30S Small Online Monitoring Thermal Imaging Core (384×288, -20~350℃)

Detector Data

Type: Uncooled FPA

IR resolution:  384×288

Pixel pitch:  17μm

Spectral range:  8～14μm

NETD/Sensitivity:  ＜60mK @F1.0, 30℃(50mK optional)

Lens Data:

Focal distance - FOV- IFOV:

     Fixed 6.2mm - 55.5°*43°- 2.742mrad

     Manual 15mm(optional) - 24°*18° - 1.133mrad

     Motor 15mm - 24°*18° - 1.133mrad

Minimum imaging distance:  50cm

Focus:  Manual/Fixed/Motor(support auto focus)

Image Performance:

Image enhancement:  The second generation image algorithm Ultra DDE

Frequency:  25Hz

Digital zoom:  1.0X~4.0X, 0.1 step

Palette:  12 palettes(including iron, rainbow, white hot and black hot etc.)

Measure:

Temperature range: Three gear temperature measurement: -20℃~+150℃; 120℃~600℃; -20℃~+350℃

Measurement accuracy:  ±2℃/±2%(reading)

Measurement correction:  Support, manual/auto

Power System:

Working voltage:  DC9.5～14V Standard: DC12V

Power consumption:  Normal≤2W Peak power consumption:≤2.5W

Environment Parameters:

Operating temperature range: -20℃~+50℃

Storage temperature range:  -40℃~+70℃

Humidity:  ≤90%(Non-condense)

Vibration:  5Hz~200Hz~5Hz 2.5G swept sine

Shock:  30G 11ms

Physical data:

Size:

     Without lens: 60.6mm(L) * 46mm(W) * 49.5mm(H)

     With 15mm fixed focus lens: 70mm(L)* 46mm(W) * 49.5mm(H)

Weight: ＜145g(Without lens) With 15mm fixed focus lens: 190g

Mounting:  UNC 1/4-20 standard tripod interface, M2 threaded joint

Packing Standard: Thermal camera, 10PIN terminal, warranty card, certificate, power cable, analog connection line, RCA to BNC connector
