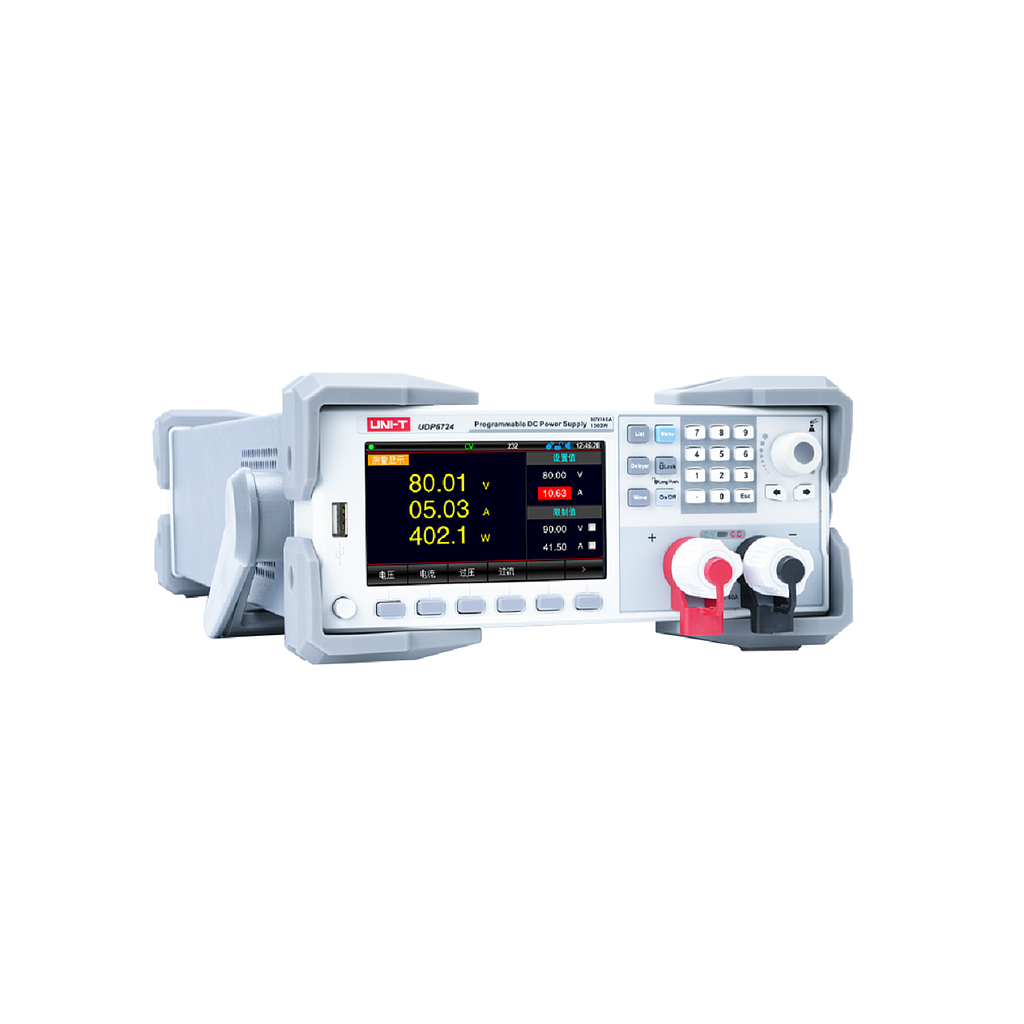

UNI-T UDP6723 Programmable DC Power Supply (80V, 40A, 850W)

Rated output voltage: 0~80V

Rated output current: 0~40A

Output power: 850W

Load regulation ±(%of Output+Offset)

Voltage: <0.01%+10mV

Current: <0.1%+10mA

Power regulation ±(%of Output+Offset)

Voltage: <0.01%+10mV

Current: <0.1%+10mA

Setting Resolution

Voltage: 10mV

Current: 10mA

Setting Accuracy (25℃±5℃)±(% of Output + Offset)

Voltage: <0.03%+20mV

Current: <0.1%+40mA

Readback resolution

Voltage: 10mV

Current: 10mA

Readback accuracy (25℃±5℃) ±( % of Output +Offset)

Voltage: <0.03%+20mV

Current: <0.1%+40mA

Ripple and noise (20Hz~20MHz)

Voltage: <100mVpp

Current: <50mArms

Temperature coefficient (% Output/°C+Offset)

Voltage: 0.02%/℃+10mV

Current: 0.03%/℃+20mA

Rise time (light load): <0.3S

Rise time (full load): <0.5S

Fall time (light load): <5S

Fall time (full load): <0.15S

Transient Response: <500uS

Readback Temp.coefficient (%Output/°C+Offset)

Voltage: 0.01%+10mV

Current: 0.03%+20mA

Setting stability-30min

Voltage: 0.03%+20mV

Current: 0.1%+40mA

Setting stability-8h

Voltage: 0.03%+20mV

Current: 0.1%+40mA

Readback stability-30min

Voltage: 0.03%+20mV

Current: 0.1%+40mA

Readback stability-8h

Voltage: 0.03%+20mV

Current: 0.1%+40mA

Protection: OVP/OCP/OTP

Storage: 100

List Function: 40*200

Screen: 4.3"TFT LCD

Interface: RS232/RS485/USB Host/USB Device/LAN

USB: √

Protocol: SCPI/MODBUS

Power Voltage: 220V ±10%

Frequency: 47~63Hz

Size(W×H×D): 475*215*88mm

Weight: 5.9kg

Efficiency: 84%

Fuse: 15A

PF: 0.98

Max Input Current: 10A

Maximum Apparent Power: 1100VA

Withstand Voltage: 500V
