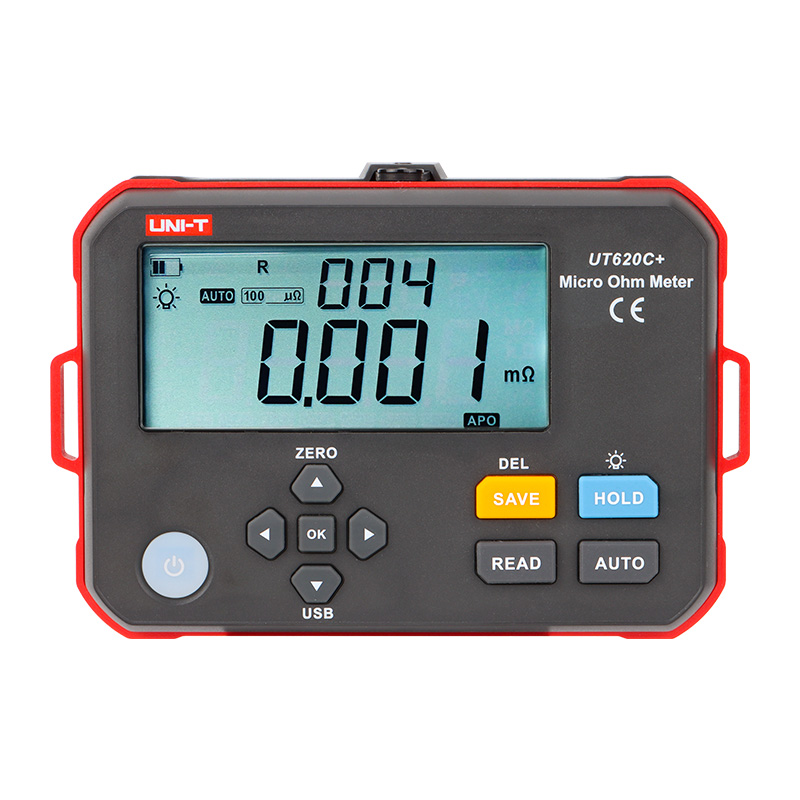

UNI-T UT620C+ Micro-ohmmeter (100.1kΩ~100.00mΩ)
Manufacturer: UNI-T Model: UT620C+ - Contact
- In stock: 1 Unit
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Resistance range: 100.1kΩ~100.00mΩ/1A
Features:
Functions: Measuring the resistance of all kinds of wires, switches, connectors, contactors, fuses, coils, transformer windings, metal riveting, and so on.
Measurement methods: Four-wire method
Test current: ≤1A
Open circuit voltage: ≤4.2V
Input protection: ≤36V AC/DC
Power consumption: measurement power: ≤8W
Measuring speed: about 2times/s
Automatic power off: 15 minutes if no operation
storage: 500 set
display type: segment LCD
USB ingerface: Type C
Backlight: Yes
Low battery indication: Yes
IP rating: IP54
Certificate: CE, RoHS
General Characteristics
Power supply: DC 3.7V 3200mAh lithium battery
Product Color: Black + Red
Product Weight: 480g(battery included)
Product Dimension: 161 mm×117 mm×68mm
UT620C+ can measure a wide range of resistance values with high precision. It is a highly accurate portable resistance meter capable of measuring resistance levels from micro-ohm to mega-ohm. It is ideal for testing and maintenance of large equipment, such as measuring winding and welding resistance of large motors and stators for hybrid and electric vehicles. Widely used in telecommunications, power distribution systems, new energy vehicles, petrochemicals, industrial plant grounding systems, etc.
