Fall Time: 23 ns
Rise Time: 49 ns
Technology: Si
Unit Weight: 2 g
Channel Mode: Enhancement
REACH - SVHC: Details
Configuration: Single
Mounting Style: Through Hole

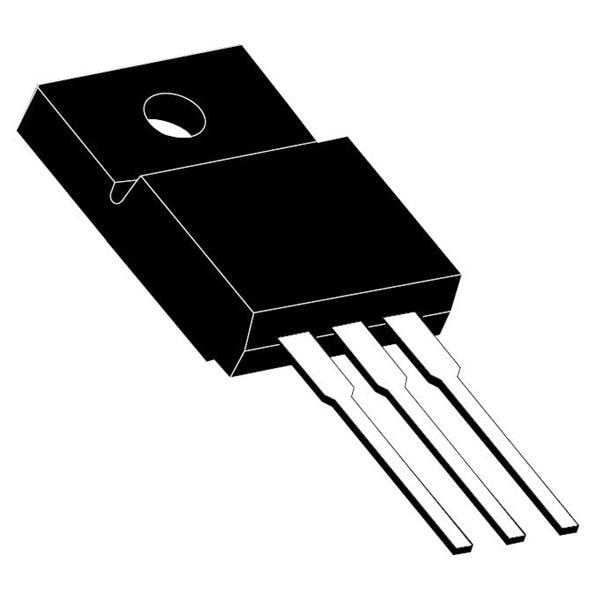

Transistor Type: 1 N-Channel E-Series Power MOSFET
Qg - Gate Charge: 33 nC
Number of Channels: 1 Channel
Transistor Polarity: N-Channel
Pd - Power Dissipation: 33 W
Vgs - Gate-Source Voltage: - 30 V, + 30 V
Typical Turn-On Delay Time: 14 ns
Typical Turn-Off Delay Time: 22 ns
Id - Continuous Drain Current: 19 A
Maximum Operating Temperature: + 150 C
Minimum Operating Temperature: - 55 C
Forward Transconductance - Min: 5.3 S
Rds On - Drain-Source Resistance: 180 mOhms
Vds - Drain-Source Breakdown Voltage: 600 V
Vgs th - Gate-Source Threshold Voltage: 3 V
