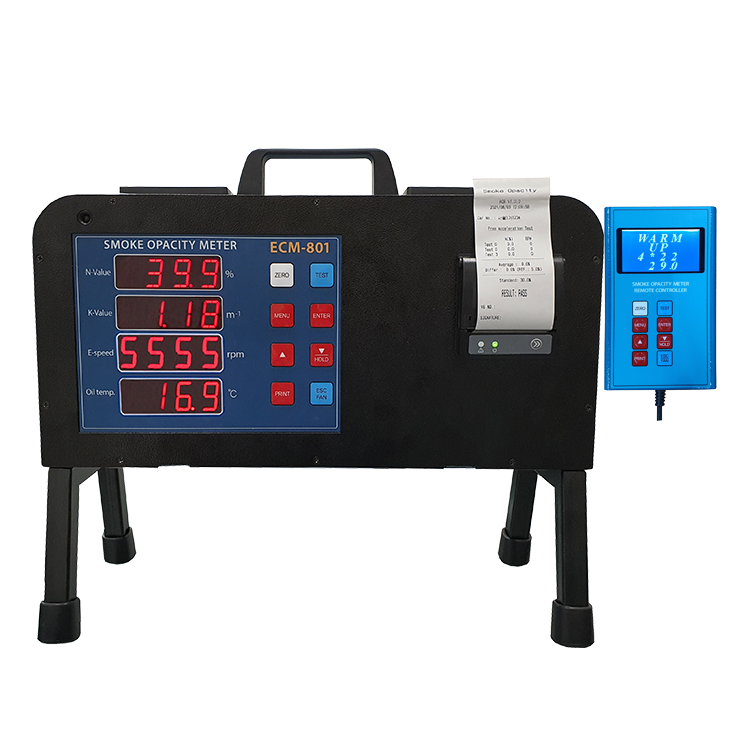

VISKOR ECM-801 Opacity SMoke Meter

Measurement items: Smoke concentration (Opacity), absorption coefficient(K-value)

Measurement method: Partial flow sampling method / Light transmission type

Photoelectric element: Green LED (565nm)

Detector: Photodiode

Tube Length / ID: Length: 215mm (± 0.5mm), ID.: 21mm

Measuring range: Opacity: 0% - 100%, K-value: 0.00 – 16.07m-1

Resolution: 0.1% / 0.01m-1

Accuracy: ±1%

Response time: 0.5 sec (90%)

RPM: 0-8000rpm

Resolution: 10rpm

Oil temperature: 0 ~ 150°C

Resolution: 1°C

Display: 4digit 16 Segments

Measurement speed/ display speed: 50 times/sec. 4 times/sec

Filter: Bezel low pass digital filter (0.5 second)

Preheating time: Within 5 minutes

Operating Temperature: -10 ~ 40°C

Power supply: AC 220V 50/60Hz

Option: Internal printer, wired remote controller, wireless application for mobile phone, RPM meter & Oil temperature meter, Standard filters
