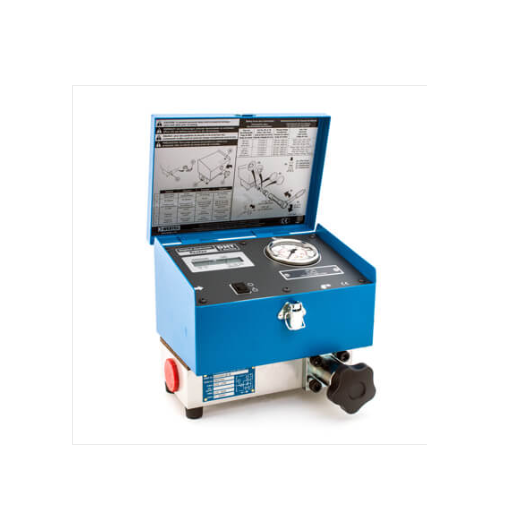

Webtec DHT401-B-6 Digital Hydraulic Tester (10-400LPM; 0-420 bar)
Manufacturer: Webtec Model: DHT401-B-6 Origin: United Kingdom Guarantee: 12 Month - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Flow Range: 10 - 400 LPM
Pressure Range: 0 - 420 bar
Fluid Temperature Range: 0 - 120°C
Inlet/Outlet Ports: 1” BSPP
Functional specification
Ambient temperature: 5 to 40°C (41-104°F)
Fluid type: Hydraulic oil
Accuracy: Flow: ± 1% full scale
Pressure: ± 1.6% full scale
Temperature: ± 1°C (± 2°F)
Dimensions in mm (inches): 240 (9.45”) wide, 200 (7.87”) deep, 200 (7.87”) high
Weight: Unpacked 6.5Kg (14lbs)
Construction materials
Case: Painted mild steel
Flow block: High tensile aluminium
Seals: Viton as standard - EP seals on request
