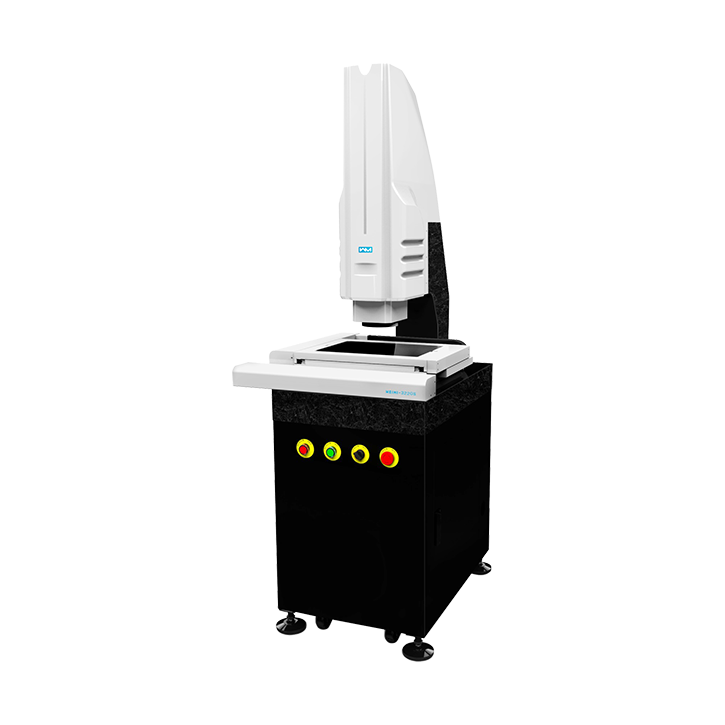

Weimi WEIMI652GS Automatic Image (600/500/200 mm)

Dimension(L*W*H): 1450x1020x1700 mm

Measuring range (Y/X/Z): 600/500/200 mm

Workbench

Working desk: 760*660

Material: Grade marble table & P-level linear guide

Glass surface: 660*560 mm

Load bearing: 35kg

Total weight: 750 kg

Image measurement and measurement system

CCD: Weimi20 1/3 inch color high resolution camera 520TV line (optional)

Zoom lens: Weimi automatic zoom lens

Video zoom: 30-225X

Object field of view: 10.6-1.6 mm

Working distance: 90 mm

Linear accuracy (µm): X/Y Accuracy ≤2.2+L/200, Z Accuracy ≤4+L/50 ("L" refers to the measured object l.ength in mm)

Repeatability: ≤0.003mm

Positioning accuracy: 0.001mm

Illumination: LED surface light, brightness adjustable

Temperature & Humidity: 15-30°C, relative humidity: 20-80% (non-condensing)

Power supply: 220V±10% (AC) 50Hz

Machine credit: 1850W
