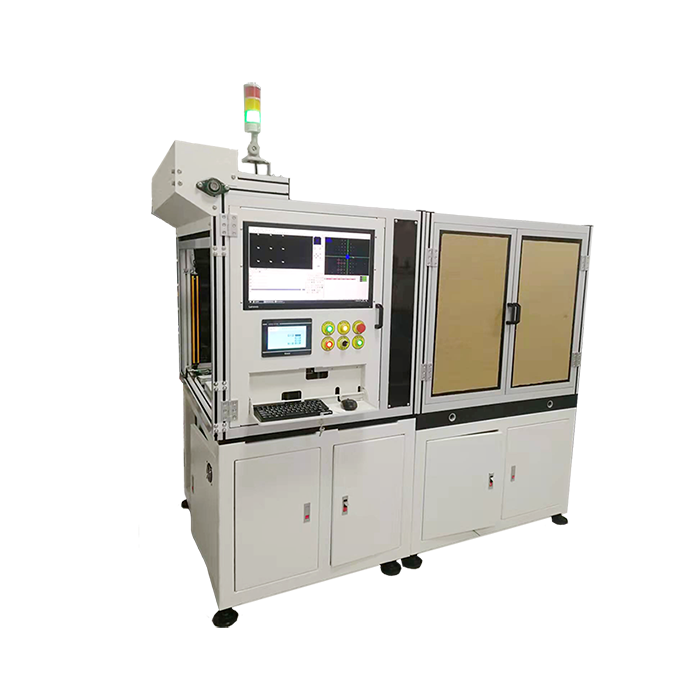

Weimi WEIMILT11 Laser Thickness Gauge (500/400/200 mm, 300W)

Overall Dimensions L*W*H (mm): 1500*1300*1500

Measuring Range (mm) (Y/X/Z): 500/400/200

Workbench:

Worktable: 600*500 mm

Bearing: 50 kg

Weight: 1000 kg

Laser spot diameter parameter: 0.02-0.5mm

Linear Accuracy (um): 2+L/300 ("L" Refers to the length of the measured object，unit:mm)

Repeatability accuracy (um): ±1

Positioning Accuracy (um): ±1

Lighting: LED light

Temperature & Humidity: 15-30°C, Relative humidity: 20-80% (Non-condensing)

Power Supply: 220V±10%（AC） 50HZ

Machine Credit: 300W
