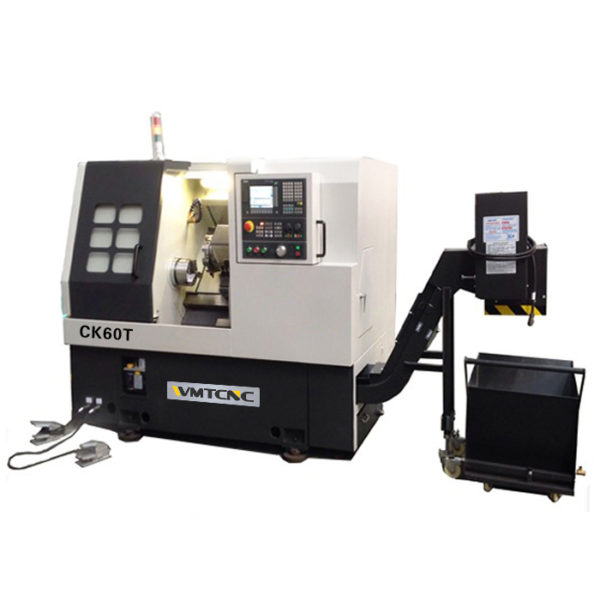

Max.swing over bed: Φ570mm
Max. processing diameter: Φ500mm
Max.processing diameter on the tool holder: Φ230mm
Max.processing length: 520/750mm
Spindle head type: A2-6
Hydraulic chuck: 8/10 inches
Spindle motor power: 11-15KW
Max.spindle speed: 4200rpm
Spindle bore diameter: Φ66mm
Bar diameter: Φ52mm
Size of X/Z axis screw: 3210mm/4010mm
Max.travel of X axis: 270mm
X axis motor torque: 11N.M
Size of X/Z Axis linear guideway: 45/45
Max.travel of Z axis: 610/840mm
Z axis motor torque: 11 N.M
Center height of 12-station power turret: 100mm
center height of 12-station servo hydraulic turret: 100mm
Max. travel of Tailstock: 480mm
Tailstock sleeve taper: MT-4
Angle: 30°
Dimensions (L×W×H): 1800×1320×1438mm / 2100×1386×1660mm
Weight: 3400/3700kg
