Energy: Electricity
Working Power: 35KW
Input voltage range: 70V-550V
Output oscillation frequency: 1-20KHZ
Output current: 10-70A
Weight:
+ Power supply: 50kg;
+ Control cabinet: 43kg
Dimension:
+ Furnace: 830*560*920mm (L*W*H);
+ Power supply: 630*340*540mm (L*W*H);
+ Control cabinet: 500*230*460mm (L*W*H)
Capacity: 10KG cast iron
Crucible Type: Graphite
Max temperature: 2000 Degree Celcius (hearth)
Melting Cycle: 6-10 Mins
Cooling type: Water cooling
Cooling water requirement: ≥0.3Mpa; ≥10L/min
Customized service: Yes
Supply scope:
Heating power source, 1 set;
Foot switch, 1 pc;
Connection wire 2pcs; single wire 1 pc;
Metal melting furnace body 1set; flexible connection cable 2pcs;
Protective cap 1 set; protective gloves 1 pair;
User manual 1 copy;
Main Features
4.1 The electric metal melting furnace has alarm function and fault detection function,
such as fault state protection and display including overcurrent, overvoltage and water shortage, etc.
4.2 The electric induction metal melting furnace adopts IGBT power device and unique
frequency conversion technology to operate stably and provide higher reliability and durability.
It has the function of constant current and constant power control, which greatly optimizes
the metal heating process, realizes efficient and fast heating, and gives full play to the
advantages of the product. Under the same conditions, it has twice the power saving than
the traditional SCR medium frequency. With 100% load design, it can work continuously for
24 hours and improve heating quality.
4.3 The main power devices of the electric induction melting furnace are all German
Siemens brands, and the main electronic components are imported products (Motorola
(diode), NEC (triode), ST (three terminal voltage regulator), FAIRCHILD, ON etc., which
make them work stably and have higher reliability and durability.

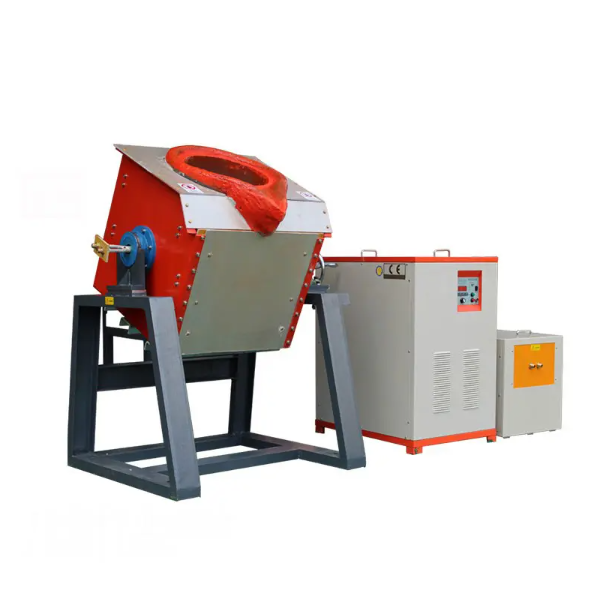

4.4 The electric induction tilting melting furnace requires a small floor area, and is very
convenient in operation. It is equipped with magnetic mixing function which ensures a more
even melting process.
