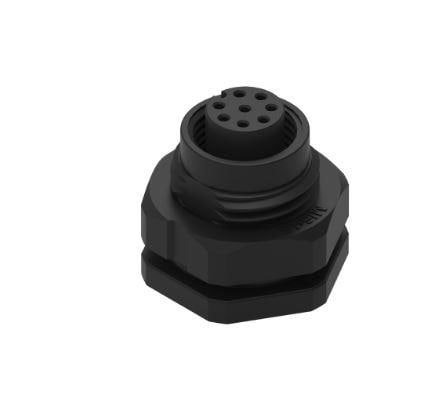

Wurth Elektronik 643120100408 Receptacles WRCIRC M12 Screw Coding A Panel Solder Bucket Plastic with Front Panel Nut M16 Female connector, polarity 8
Manufacturer: Wurth Elektronik Model: 643120100408 - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Color: Black
Length: 20 mm
Diameter: 12.2 mm
IP Rating: IP68
Wire Gauge: 26 AWG to 22 AWG
Shell Style: Receptacle
Thread Size: M12
Mating Style: Threaded
REACH - SVHC: Details
Mating Cycles: 100 Cycles
Contact Gender: Socket (Female)
Current Rating: 2 A
Housing Gender: Female
Mounting Angle: Straight
Mounting Style: Panel Mount
Shell Material: Polyamide (PA)
Voltage Rating: 30 V
Contact Plating: Gold
Contact Material: Copper
Housing Material: Polyamide (PA)
Termination Style: Solder
Flammability Rating: UL 94 V-0
Number of Positions: 8 Position
