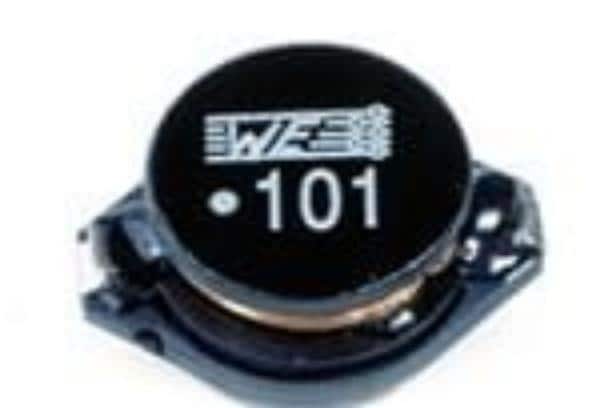

Wurth Elektronik 74455115 Power Inductor WE-PD4 Type S 15uH 1.1A DCR=230mOhms20%
Manufacturer: Wurth Elektronik Model: 74455115 - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Width: 4.45 mm
Height: 2.92 mm
Length: 6.6 mm
Core Type: Wirewound
Shielding: Unshielded
Tolerance: 20 %
Inductance: 15 uH
Application: Power
Termination: Standard
Unit Weight: 130 mg
Core Material: Ferrite
Mounting Style: PCB Mount
Test Frequency: 100 kHz
Termination Style: SMD/SMT
Maximum DC Current: 1.1 A
Saturation Current: 800 mA
Maximum DC Resistance: 230 mOhms
Self Resonant Frequency: 19 MHz
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
