Lifting capacity: 5000kN
Loading speed error: ±7%
Speed adjustable range: (1～100）kN/s
Relative error of indicating value: ±1%
Maximum net distance between pressure plate: 1500mm
Clear distance between columns: 780×480mm
Pressure plate size:（600×600×90）mm
Piston stroke: 200mm
The highest oil pressure: 31.5MPa
Main Motor: 9.5kW
The piston air travel up speed: 58 mm/min
Mainframe size (width x depth x height): 1700×1200×3720mm
Suttle: About 10000 kg

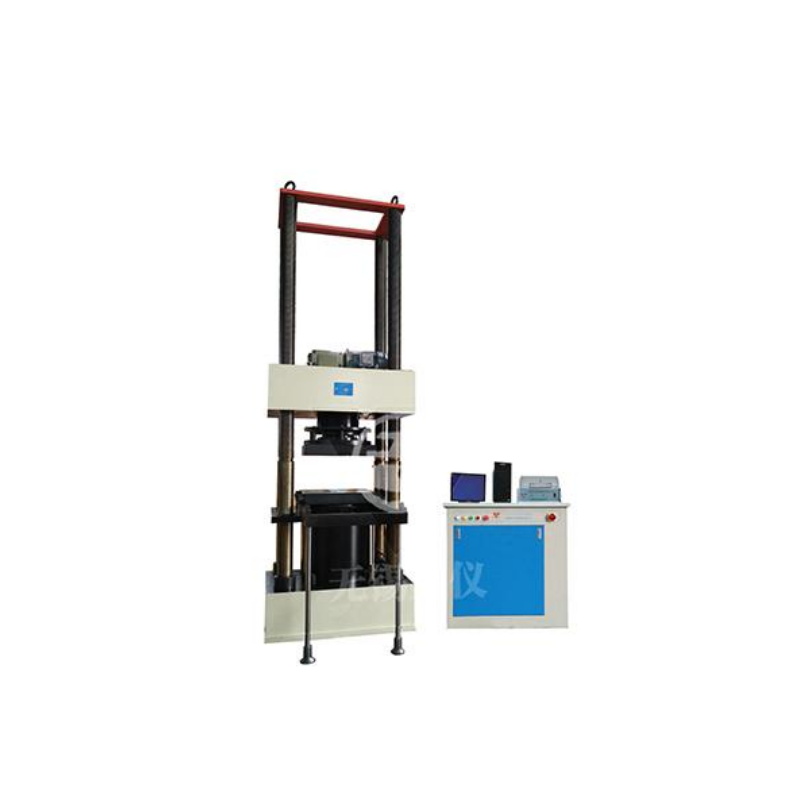

This machine is mainly used for the compression test of high strength concrete and other building materials and metal components.The maximum load is 5000kN, which is applicable to the research departments of construction, transportation, water conservancy and building materials, quality supervision and testing stations, factories and mines, colleges and universities and the laboratory of the construction site.
The standard GB/ t3159-2008 "hydraulic universal testing machine" conforms to GB/T50081 standard requirements.
