Maximum test force: 600kN
The maximum allowable value of the relative error: ±1.0%
Load accuracy level: 12-600kN
Deformation measurement range : 2%-100% FS
Maximum drawing space: 950mm
Maximum compression space: 800mm
Disc holder diameter of large circle sample: 32-40mm
Flat sample holder thickness: 0-15mm
Working piston stroke: 200mm
Upper and lower platen size: 170×170mm
Column spacing: 570mm
The maximum rising speed of the platform: 100mm/min
The maximum lifting speed of the moving beam: 240mm/min
Main external dimensions (length x width x height): 950×630×2810mm
Measurement system size (length x width x height): 950×500×770mm
Net weight: ≈3100kg

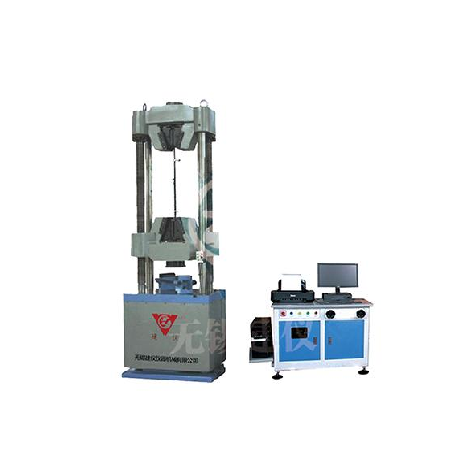

WEW G series microcomputer shows that universal testing machine (strands) can be used to test the steel strand tensile strength, elastic modulus, elongation, equipped with clamp can also be done after all kinds of metal material tensile, compression, bending and shear test;It can also be used as a test for the stretching or compression of non-metallic materials such as concrete, cement and plastics.Meet GB/T 228.1-2010, GB/T 5224-2003, GB/T 232-2010
