Testing range: 10-64000mN
Resolution: 0.1mN
Testing accuracy: ±1%
Tearing force arm: 104±1mm
Tearing initial angel: 27.5°±0.5°
Paper clipper distance: 2.8±0.3mm
Specimen cut length: 20±0.5mm
PC Connection: USB, RS 232
Printer: Thermal Printer
Dimension: 450×330×440 mm
Weight: 20 Kgs
Power: 220V, 50Hz

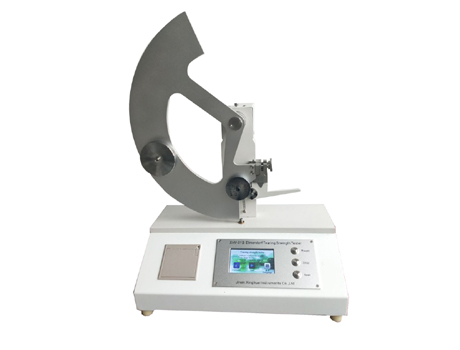

Product Description:
Tearing Tester is applicable in the tearing test of films, sheets, flexible PVC, PVDC, Waterproof films, woven materials, polypropylene, polyester, paper, cardboard, textile and non-woven, etc.
Test Standards: ISO6383/2-1983, GB11999-89, ISO1974, TAPPI414, GB455, ASTM D1922
Product Features:
High Accuracy, resolution can reach 0.1mN, ensure testing accuracy is within ±1%, user can use weights to verify the test results.
Release the pendulum bob automatically, high testing efficiency.
Color touch screen operation system.
Check or delete the testing records randomly.
Micro-printer, fast and clear printing.
Calculate, count and print the testing result automatically.
Can be connected to PC and output results with software.
User can calibrate the machine with our equipped weights easily.
