Capacity: 0-30T
Material: Stainless steel
Nonlinearity: 0.5% F.S.
Rated output: 1.0±10mV/V
Recommended excitation: 5-10VDC
Maximum excitation: 15VDC
Protect class: IP67
Compensated temp range: -10~40°C
Hysteresis: 0.5% F.S.
Operating temp range: -20~80°C
Repeatability: 0.5% F.S.
Insulation: ≥5000MΩ/100VDC
Input impedance: 350±50Ω
Output impedance: 350±5Ω
Creep(30min): 0.1% F.S.
Temp effect on output: 0.05%F.S./10°C
Zero balance: ±0.05%F.S.
Temp effect on zero: 0.05%F.S./10°C
Limit load: 150%
Breaking load: 200%
Cable size: Ø2 x4m
Life: Full scale more than 1 million times

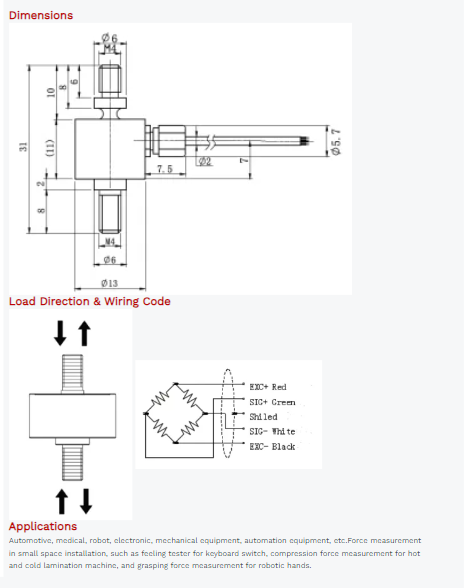

Cable Connection: Ex+: Red；Ex-: Black；Sig+: Green；Sig-: White
