Material: Alloy steel/Stainless steel
Rated output: 2.0±10%mV/V
Zero balance: ±2%F.S.
Non-linearity: 0.05%F.S.
Hysteresis: 0.05%F.S.
Repeatability: 0.05%F.S.
Creep(30 min): 0.05%F.S.
Temp effect on output: 0.05%F.S./10°C
Temp effect on zero: 0.05%F.S./10°C
Input impedance: 750±50Ω
Output impedance: 700±10Ω
Insulation: ≥5000MΩ/100VDC
Recommended excitation: 5-10VDC
Maximum excitation: 15VDC
Compensated temp range: -10~40°C
Operating temp range: -20~80°C
Limit load: 150%
Breaking load: 200%
Cable size: φ4x4m
Life: Full scale more than 1 million times
Cable Connection: Ex+: Red；Ex-: Black；Sig+: Green；Sig-: White

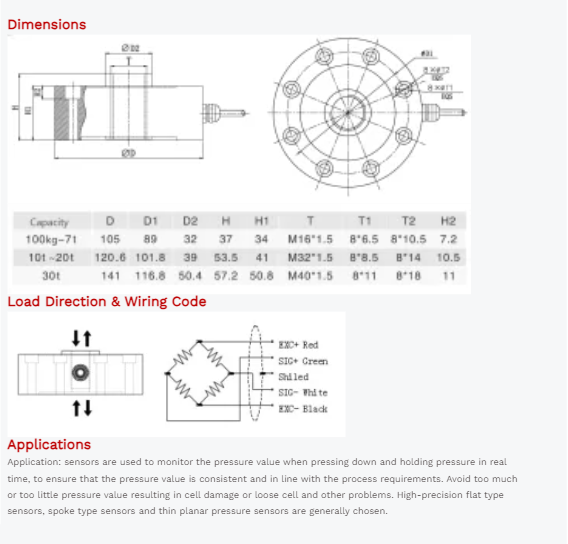

Detail
