Capacity: 0-10000 Kg
Material: Stainless steel / Alloy steel
Nonlinearity: 0.05%F.S.
Rated output: 2.0±10%mV/V
Recommended excitation: 5-10VDC
Maximum excitation: 15VDC
Hysteresis: 0.05%F.S.
Compensated temp range: -10~40°C
Repeatability: 0.05%F.S.
Operating temp range: -20~80°C
Input impedance: 400±50Ω
Insulation: ≥5000MΩ/100VDC
Creep(30min): 0.1%F.S.
Output impedance: 350±5Ω
Zero balance: ±2 %F.S
Temp effect on output: 0.05%F.S./10°C
.Limit load: 150%
Temp effect on zero: 0.05%F.S./10°C
Cable size: Ø3x3m
Breaking load: 200%
Life: Full scale more than 1 million times

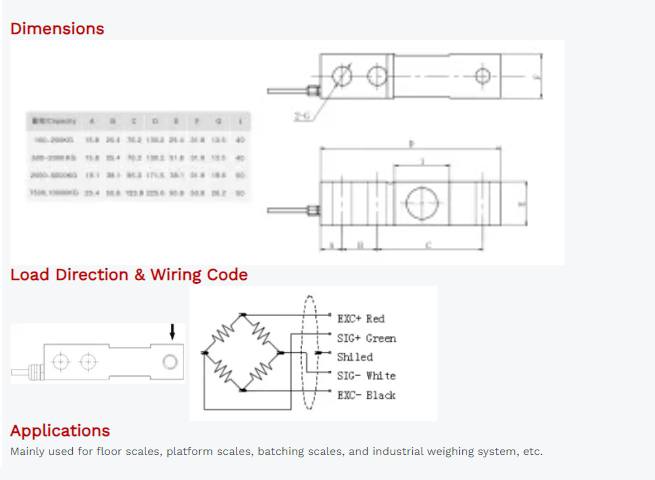

Cable Connection: Ex+: Red; Ex-: Black; Sig+: Green; Sig-: White
