Capacity: 50 Kg
Rated output: 1.0±10%mV/V
Non-linearity: 0.2% F.S.
Repeatability: 0.1%F.S.
Zero balance: ±2% F.S.
Operating temp range: -20~80°C
Compensated temp range: -10~40°C
Temp effect on zero: 0.02%F.S/°C
Insulation: ≥2000MΩ/100VDC
Recommended excitation voltage: 5~10VDC
Limit load: 1000%F.S.
Cable size: φ5x5m
Protection class: IP65

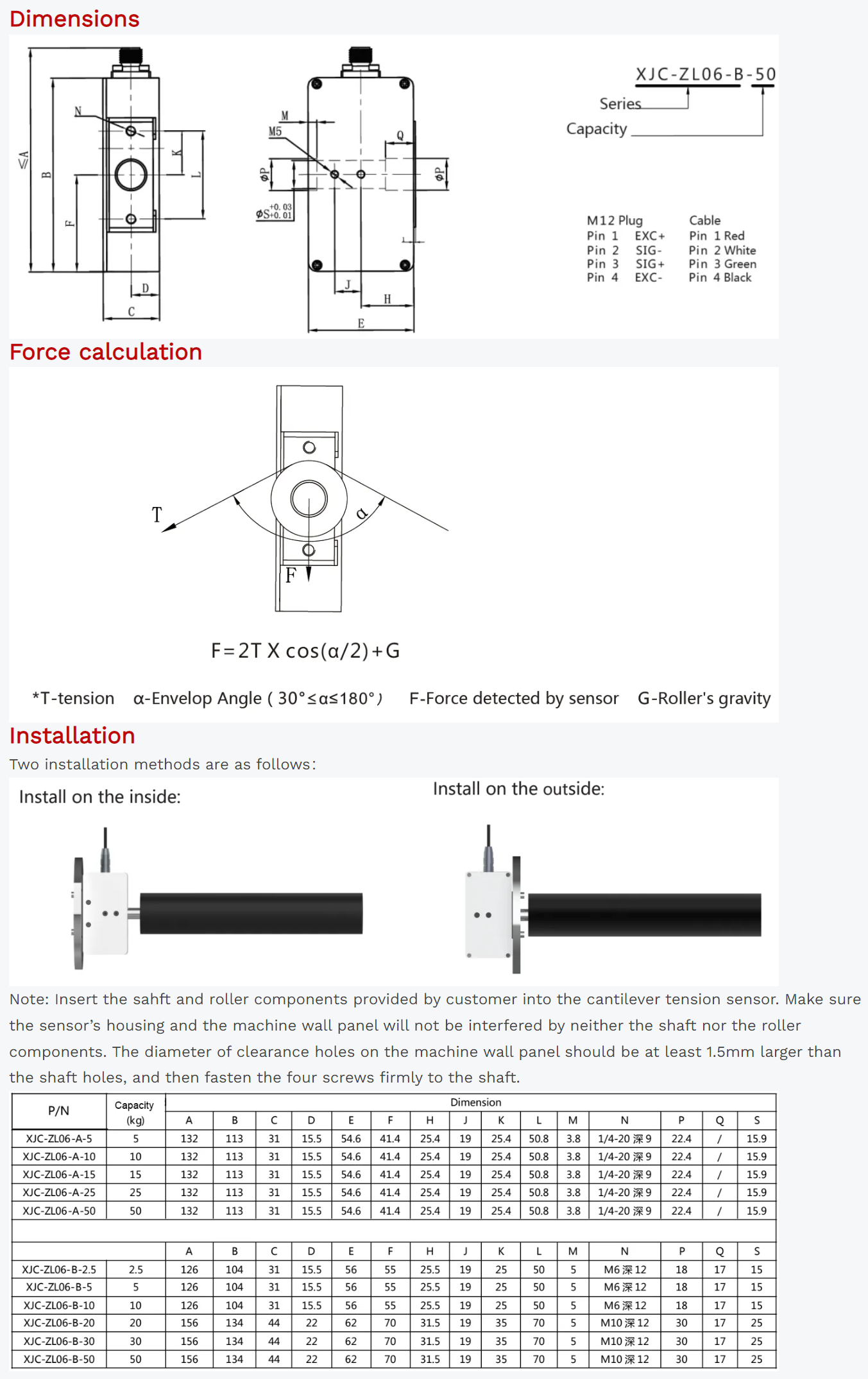

Details
