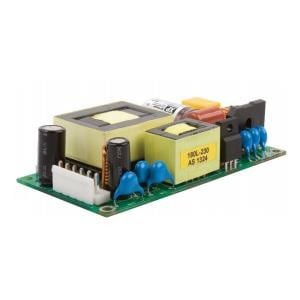

XP Power ECP180PS15 AC-DC Converter PSU, 150W, 1U 2X4" OPEN FRAME

Name: XP Power ECP180PS15 AC-DC Converter PSU, 150W, 1U 2X4" OPEN FRAME
Brand: XP Power

ModelECP180PS15

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Width: 50.8 mm

Height: 21.3 mm

Length: 101.6 mm

Industry: Medical, Industrial

Approvals: ANSI/AAMI, EN60601-1, EN60950-1, IEC60601-1, IEC60950-1, UL60950-1

Compliance: ANSI/AAMI, EN60601-1, EN60950-1, IEC60601-1, IEC60950-1, UL60950-1

Dimensions: 101.6 mm

Efficiency: 92 %

Unit Weight: 230 g

Output Power: 180 W

Input Voltage: 85 VAC to 264 VAC

Mounting Style: Panel

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 4 kVAC

Number of Outputs: 1 Output

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 12 A

Output Voltage-Channel 1: 15 VDC

Operating Temperature Range: - 20 C to + 70 C

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C
