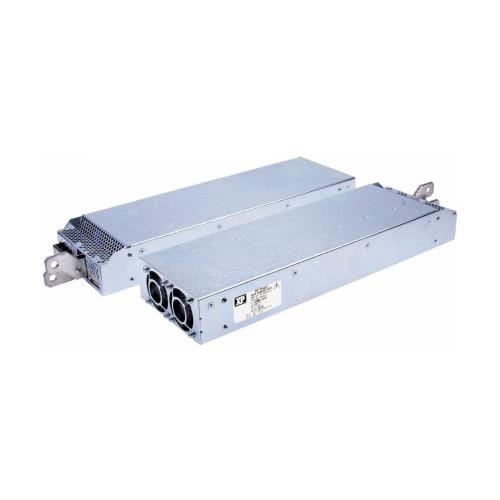

XP Power HPU1K5PS24-M AC-DC Converter PSU, 1.5KW MEDICAL, SINGLE OUTPUT

Name: XP Power HPU1K5PS24-M AC-DC Converter PSU, 1.5KW MEDICAL, SINGLE OUTPUT
Brand: XP Power

ModelHPU1K5PS24-M

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Width: 101.6 mm (4 in)

Height: 101.6 mm (4 in)

Length: 323.9 mm (12.752 in)

Industry: Medical

Approvals: ANSI/AAMI ES60601-1, CSA/cUL, EN60601-1, EN60950-1, UL60950-1

Compliance: ANSI/AAMI ES60601-1, CSA/cUL, EN60601-1, EN60950-1, UL60950-1

Efficiency: 90 %

Output Power: 1.5 kW

Input Voltage: 85 VAC to 264 VAC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 4 kVAC

Number of Outputs: 2 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 50 A

Output Current-Channel 2: 1 A

Output Voltage-Channel 1: 24 VDC

Output Voltage-Channel 2: 5 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C
