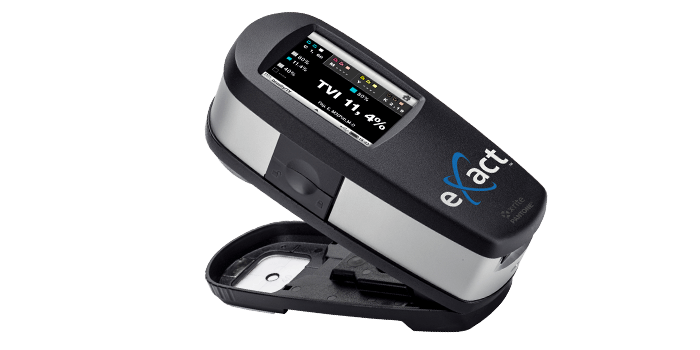

Xrite eXact Standard Handheld Spectrophotometer (2mm, w/o bluetooth)

3rd Party Software Supported: X-Rite ColorCert, X-Rite Color iQC, X-Rite InkFormulation, X-Rite NetProfiler and many others

Aperture: 2 mm

Battery: Lithium Ion, 7.4VDC, 2200mAh

BestMatch Feature: Yes

Calibration: Automatic on integrated white reference

Color Differences: CIE ∆E* (1976), ∆ECMC, CIE ∆E* (2000), and CIE ∆E* (1994)

Color Spaces: CIE L*a*b*, CIE L*C*h°

Communication Interface: USB 2.0

Connectivity: USB 2.0;

Density Range: 0.0 D – 3.0 D

Density Standards: Status A, E, I, T and G

Dimensions (length, width, height): 18 cm x 7.8 cm x 7.6 cm (7.1" x 3.1" x  3.0")

Embedded NetProfiler Support: Yes

Experience Level: Pressrooms, Press Operators and Production Supervisors looking to reduce make ready waste through tight color control.

G7 Certification: Yes with embedded G7, PSO, Japan Color job templates

Humidity: 30 to 85% RH (non-condensing)

Illuminants: A, C, D50, D55, D65, D75, F2, F7, F11, F12

Import/Export Format: CxF3

Industry Standards: ISO 5-4:2009(E), ISO 13655:2009

Instrument Display: Color touch-screen, 320 x 240 pixels

Inter-Instrument Agreement:

Average: 0.25 ΔEab,

Max: 0.45 ΔEab (for M3: 0.55 ΔEab) (Measurements using X-Rite manufacturing standards at a temperature of 23°C +/- 1°C, 40-60% RH for all measurement modes on 12 BCRA color tiles and a white ceramic reference (D50, 2°))

Internal Temperature & Humidity Sensor: 30 to 85% RH (non-condensing)

Languages Supported: Chinese Simplified, Chinese Traditional, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Slovenian, Spanish, Swedish, Turkish, Vietnamese

Light Source: Gas filled tungsten (illuminant type A) and UV LED

Macintosh: eXact Manager, DataCatcher and Driver: macOS 10.13, 10.14, 10.15, 10.16 (also on Apple M1 systems), eXact DataMeasure: MacOS X 10.13, 10.14 (32-bit only)

Measurement Conditions: M0, M1 (part 1), M1 (part 2) , M2, M3; also available in Xp variant for flexible packaging substrates

Measurement Geometry: 45°/0° ring illumination optics, ISO 5-4:2009(E)

Measurement Time: < 1 sec

NetProfiler Support: Yes

Observers: 2° and 10°

Operating Temperature Range:

10°C to 35°C

50°F to 95°F

PantoneLIVE Support: Yes; Embedded Pantone Libraries

Pass / Fail: Yes

Scanning Capability: Yes (Optional Upgrade)

Service Indicator: Certification Reminder

Short Term Repeatability - Density: +/- 0.01 D for CMYK (Status E or Status T measurements, maximum error compared to mean value of 10 measurements every 5 seconds at 2.0 D except for M3 Yellow at 1.7 D)

Short Term Repeatability - White: 0.05 ΔEab (standard deviation) White BCRA (Error compared to mean value of 10 measurements every 5 seconds)

Software Development Kit: Yes

Software Modes: Basic

Spectral Analyzer: DRS spectral engine

Spectral Interval: 10 nm

Spectral Range: 400 nm to 700 nm

Spectral Reporting: 400 nm to 700 nm with 10 nm interval

Standards: More than 20'000 standards (incl. data for all M modes); New Color Library Tool to Create and Store Standards

Storage Temperature Range: -20° to 50°C

-4° to 122°F

Supported Devices: Works with ColorCert, InkFormulation, NetProfiler

User Experience: Start-up wizard, configurable, customize toolset, upgradable

Voltage: 12 VDC @ 2.5 A

Weight:

700 g

1.6 lbs.

What's Included?: USB cable, power supply, CD with software and documentation, docking/charging station, quick start guide, carrying case, device certificate

Windows Windows XP (32bit), Windows 7 (32 and 64 bit), Windows 8 (32 and 64 bit), Windows 10 (32 and 64 bit)
