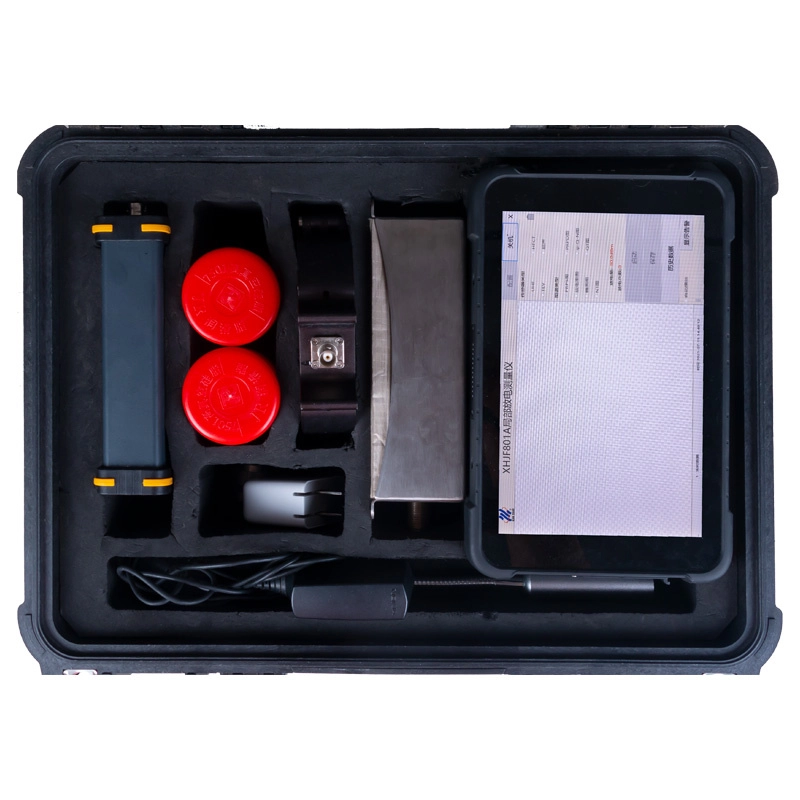

XZH Test XHJF801S Digital Partial Discharge Tester for Power Equipment Insulation Analysis (40k-300kHz)

Name: XZH Test XHJF801S Digital Partial Discharge Tester for Power Equipment Insulation Analysis (40k-300kHz)
Brand: XZH Test

ModelXHJF801S

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Channels: 2 electrical signal interfaces, 1 external synchronization interface

Sampling rate: 0.5M, 1M, 2.5M, 5M, 10M, 20M (selectable)

Sampling accuracy: 12bit

Range switching: 60dB, 40dB, 20dB, 0dB, -20dB (5 ranges total)

Band range: 20k-100kHz, 80k-200kHz, 40k-300kHz

Range nonlinearity error: 5%

Sensitivity: 0.1pC

Testable capacitance range: 6pF ~ 250μF

Test power frequency range: 50 ~ 400Hz

Display: 7" TFT true color touch LCD (800×480 resolution)

Physical storage: 256MB DDR2, 16G SD card (expandable to 32G)

Interfaces: RS232 / USB / electrical signal / SMA / SD card / network / ground

CPU: 533MHz, WINCE6.0 OS

Dimensions: 350mm × 245mm × 175mm

Weight: 5.8kg
