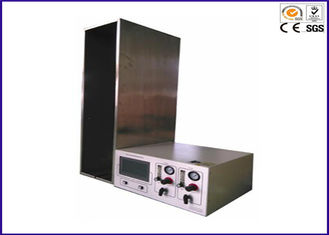

1, The touch screen intelligent control system; Operating interface in English and Chinese;
2, The system automatic ignition, automatic timing, automatic data storage;
3, The test section and control section is conbined design in one box for installing and operation;
4, Stainless steel test box,and the internal cavity size is height 1200mm, width 300mm, depth of 450mm;
6, A pre-mixed burner, and inner diameter is Ф12 ± 0.5mm, length is 100mm. 1kW mixed type standard burner, which can be provides accurate test fire;
7, Flame time and duration of combustion can be adjusted from 0 to 99 minutes 99 seconds. Automatic control testing process;
8, Import needle vavle precisely adjust the flame height, according to standards, the blue flame height is 50mm ~ 60mm, total height is 170mm ~ 190mm;
9, The gas flow rate is controlled by needle valve;
10, Equipped with a steeless flame height caliper;
11, With a gas flow meter and pressure regulator; automatic ignition;
12, The burner angle can be adjust between 45 ° and 0 °;
13, Flame check device for optional.
Size: 600(W)×450(D)×1250(H)mm
Power: AC 220V, 50/60Hz, 3A
Weight: 60kg
Manual: Provide
