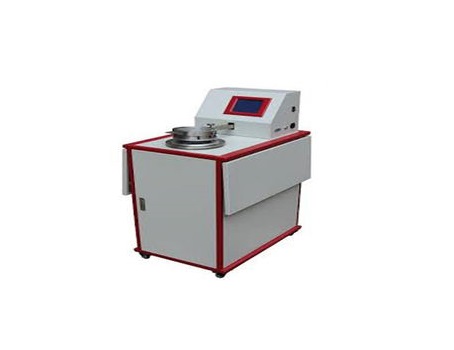

YuYang YY827 LCD Display Fully Automatic Textile Fabric Air Permeability Testing Equipment (1~2000µm )

  • Manufacturer: YuYang
    Model: YY827
    Origin: China
    Guarantee: 12 month
    • Request a Quotation Request a Quotation
  • Contact

1. Operation Display: Big LCD display.Touch screen in English version

2. Measuring Unit: mm/s, cfm, cm3/cm2/s, L/m2/s, L/dm2/min, m3/m2/min

3. Test Accuracy: better than ±2%

4. Test Pressure: 0-4000Pa

5. Air permeability: 1~40000mm/s

6. Measuring error:≤±2%

7. Fabric thickness could be:≤12mm

8. Test Area &Test Tip 20 and 38c㎡(Standard) ; 5,25,50 and 100c㎡ (choose to buy)

9. Collocation Micro Printer

10. Power Source: 220V±10% , 50Hz.1100W

11. External Dimension 750x465x1050mm

12. Nozzle: 8 pcs, automatically changeable by machine

13. Gross weight / Net weight 120Kg/95Kg
