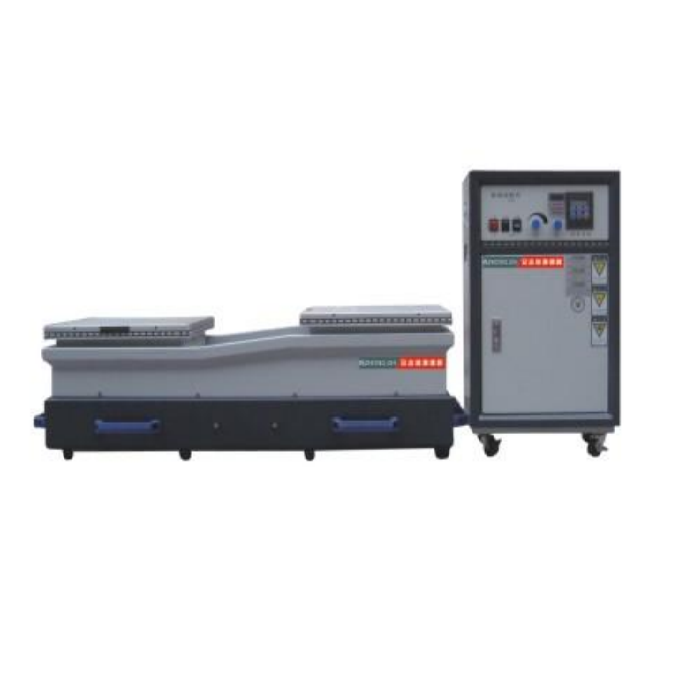

Zhongzhi CZ-80ZY Electromagnetic Vertical+Horizontal Vibration Table (40kg)
Manufacturer: Zhongzhi Model: CZ-80ZY Guarantee: 12 Month - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Maximum Test Load: 40kg
Manual Frequency Range: 1-200Hz
Automatic Frequency Sweep Range: 1-200Hz
No-load Displacement Range: 0-5mm
Vibration Direction: Vertical + Horizontal
Vibration Waveform: Sine wave
Test Mode: FM/automatic, Sweep frequency (several times, linear frequency, random vibration)
Time Range: 0.01s-99.99h
Vertical Platform Dimension (LxWxH): 450 x 450 x 46mm
Horizontal Platform Dimension (LxWxH): 450 x 450 x 46mm
Bench Dimension (LxWxH): 1200 x 500 x 450mm
Size of Control Cabinet (LxWxH): 500x380x1050mm
Power (V/Hz): 220/50 ± 5%
Power Consumption: 2.2KVA
Cooling Method: Air cooling
Ambient Temperature: +5°C ~ +35°C
Relative Humidity: <85%RH
