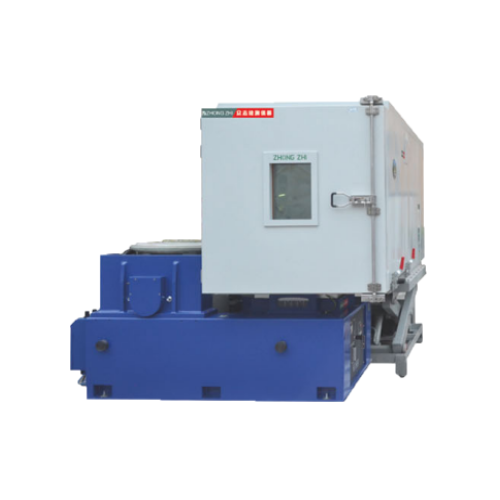

Zhongzhi CZ-J-608B Temperature Humidity Vibration Chamber (0℃~100℃, 20%~98%R.H)

Internal Dimensions WxHxD (cm): 80x95x80

External Dimensions WxHxD (cm): 130x181x137

Temperature Range: 0℃ ~ 100℃ (150℃)

Humidity Range: 20%~98%R.H.(10%-98%R.H/5%~98%R.H is a special optional condition)

Analytic Accuracy/Evenness degree of Temperature and Humidity: ±0.1℃; ±0.1%R.H./1.0℃; ±3.0%R.H.

Control Accuracy/Temperature stability of Temperature and Humidity: ± 1.0℃; ±2.0%R.H./±0.5°C; ±2.0%R.H.

Heating/Cooling Rate: Approximately 3.0℃/minute; approximately 1.0℃/minute ("2~10℃ decrease per minute" is a special optional condition)

Inner and Outer Materials: Outer plate is sus 304# stainless steel with matte treatment

Insulation Material: High temperature resistant high density polyurethane rigid foam insulation materials.

Cooling System: Air cooling / single segment compressor (-20℃), air water cooling/double segment compressor

Protection Devices: Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, over-humidity and over-temperature protection switch, fuses, failure warning system

Parts: Recorder (optional), watching window, 50mm testing hole, PL internal bulbs, partition plate, dry and wet ball gauze

Vibration Table: selection based on the customer's requirement; Detail technology parameters please see the vibration system, at the page of 18 to 20, of the mechanical test instrument version directory

Controller: South Korea"TEMI"

Compressor: France's "Tecumseh" Brand

Power: 3Փ 380VAC±10% 50/60Hz
