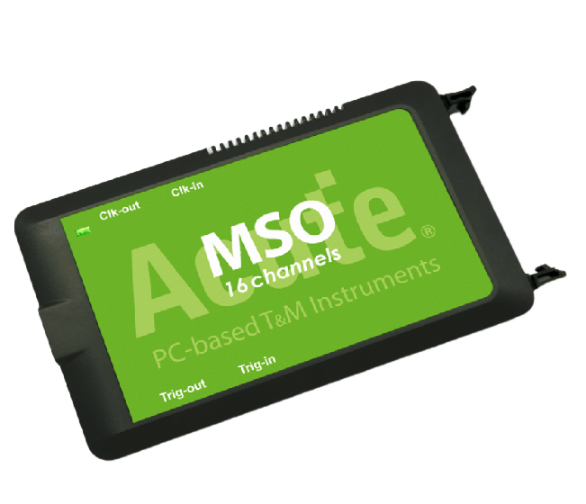

Acute MSO2216B Mixed signal oscilloscope (16 CH; 40MHz; 8Gb)

DSO Spec.

Power source: USB bus-power (+5V)

Static power consumption: 0.9W

Max power consumption: <6W

≧12 bits Sampling [Record length]: 200MHz

Input channels: 16

Bandwidth: 40 MHz

Resolution: 12 bits

LA Spec.

Power Source: USB bus-power (+5V)

Static Power Consumption: 0.9W

Max Power Consumption: <6W

Hardware Interface: USB 3.0

Timing Analysis (Asynchronous，Max. Sample Rate): 2 GHz

State Clock Rate (Synchronous，External Clock): 200 MHz

Storage: Conventional Timing, Transitional Timing

Channels: 16

Total Memory: 8Gb

Timing Analysis: Available Chs (Conventional / Transitional Timing) - Memory per Ch

2GHz Timing [Available Chs] - Memory per Ch: [8/7] - 1Gb

1GHz Timing [Available Chs] - Memory per Ch: [16/14] - 512Mb

500MHz Timing [Available Chs] - Memory per Ch: [16/16] - 512Mb

250MHz Timing [Available Chs] - Memory per Ch: [16/16] - 512Mb

Channel to channel skew: < 1ns

Input channels: N/A

Input impedance: 1MΩ//2pF

Max. (Non-destructive): over ±42V DC & AC

Input operation: ±20V / ±10V (Standard / High Resolution)

Input sensitivity: 200MHz (1Vpp)

Threshold group: 2 (CH0~7 & CKI, CH8~15)

Threshold range: ±20V

Threshold resolution: 50mV

Threshold accuracy: ±100mV + 5%*Vth

Trigger resolution: 500ps

Trigger types: Channel, Pattern, Single / Multi Level, Width, Time-out, Setup/Hold Timing Violation, External, Manual

Protocol Trigger:

BiSS-C, CAN2.0B/CAN FD, DALI, DP_Aux, eMMC 4.5, eSPI, HID over I2C, I2C, I2S, LIN2.2, LPC, MDIO, MII, Mini/Micro LED, MIPI I3C 1.1.1, MIPI RFFE 3, MIPI SPMI 2, Modbus, PMBus, Profibus, RGMII, RMII, SD 2.0 (SDIO 2.0), SENT, Serial Flash (SPI NAND), SMBus, SPI, SVI2, SVI3, SVID, UART (RS232), USB PD 3, USB1.1

Protocol Analyzer:

BiSS-C, CAN2.0B/CAN FD, DALI, DP_Aux, eSPI, HID over I2C, I2C, I2S, LIN2.2, MDIO, MII, MIPI I3C 1.1.1, MIPI RFFE 3, Modbus, PMBus, Profibus, PWM, RGMII, RMII, SMBus, SPI, SVI3, SVID, UART (RS232), USB PD 3, USB1.1
