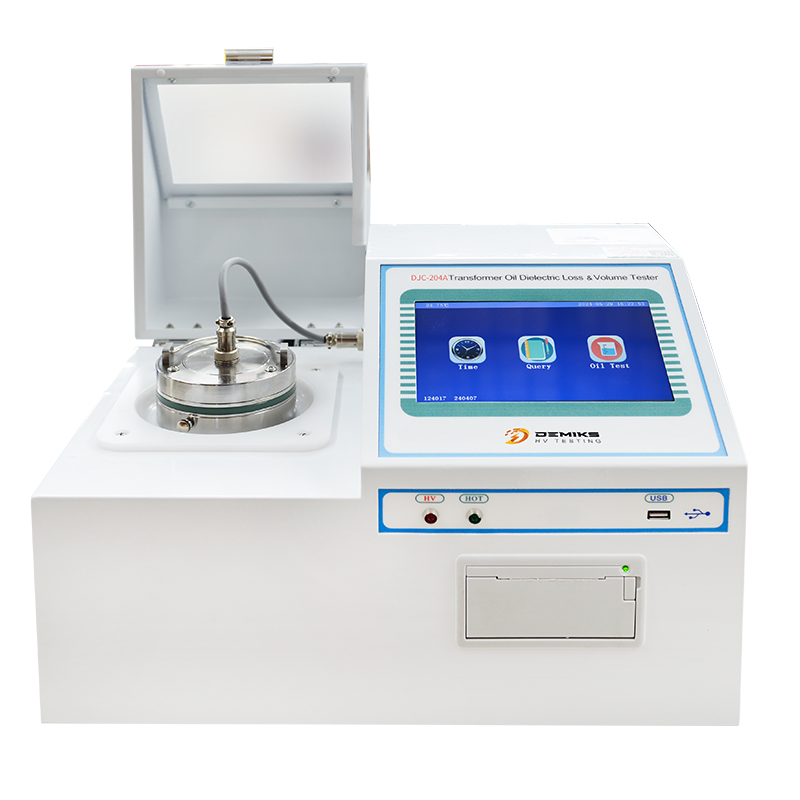

DEMIKS DJC-204A Transformer Oil Dielectric Loss Tester

Working Condition: -5℃~40℃ RH<80%

Temperature Control Error: ±1℃

Power Source: AC220V±10% unlimited frequency

Temperature Control Time: Indoor temperature reach 90℃, <20min

High Voltage Output: 1000~2200V every 200V

Measurement Range

tgδ unlimited

Cx 15pF~300pF

Rx 10M~10T

Output Current: 25mA

Accuracy

△tgδ:±(read*1.0%+0.020%)

△Cx: ±(read*1.0%+0.5pF)

△Cx:  read*10%

Capacitance: 50VA

Relative Dielectric Constant: εr automatically count

Temperature Control Induction Furnace: Maximum power 500W

Volume Resistivity: ρ automatically count

Temperature Control Range: <100℃

Overall Dimension: 450x310x360mm

Temperature Measurement Error: ±0.1℃

Weight: 18kg
