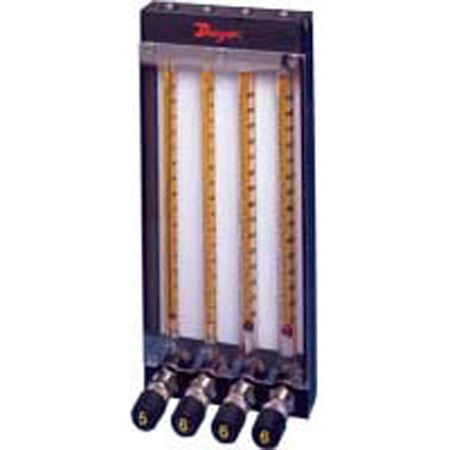

Dwyer VA86 Custom Multitube Flow Systems for Metering & Mixing, Up to 6 Tubes (1/8 in, NPT Female)

Accuracy: ± 2 %, ± 5% with transitional flow

Valve Type: 16-Turn Valve

Scale Length: N/A

Accuracy Note: ± 2% FS @ 70°F (21.1°C) and 14.7 psia (1 atm absolute)

Gas Flow, Max: 6201 ml/min

Pressure Type: Gauge

Repeatability: ± 0.25%

Tube Capacity: N/A

Proof Pressure: Up to 200 psi

Turndown Ratio: 10:1

Liquid Flow, Max: 201 ml/min

Materials, Wetted: 316 Stainless Steel, Fluoroelastomer, PCTFE (Polychlorotrifluoroethylene)

Repeatability Note: ± 0.25% of scale reading

Media Compatibility: Air, Water

Turndown Ratio Note: 10:1, 20:1 with combinations of two floats installed in meter

Mounting Orientation: Vertical

Process Connection Size: 1/8 in

Process Connection Type: NPT Female

Operating Temperature, Max: 250 °F

Material Construction Option: Stainless Steel
