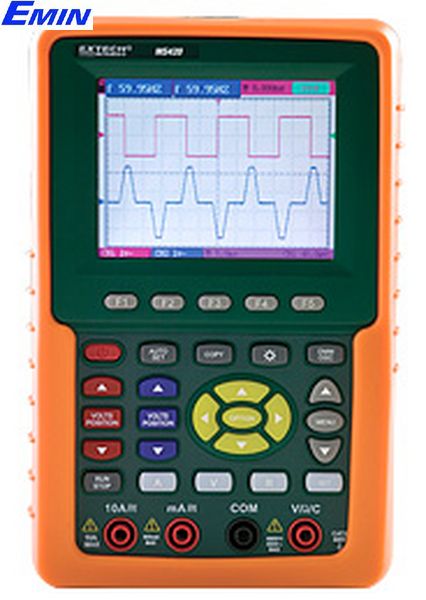

Specifications
Oscilloscope Functions
Display Size: 3.8" (96mm) color LCD; 320 x 240 pixels
Bandwidth: 60MHz
Real time: sample rate 250MS/s
Risetime: 17.5ns
Channels: 2
Record Length: 6K points per channel
Glitch Capture: 50ns
Vertical Sensitivity: 5mV to 5V/div
Vertical Resolution: 8 bits
Timebase Range: 5ns to 5s/div
Sample Mode: Sample, Average, Peak Detect
Trigger Modes: Free Run, Single Shot, Edge, Video
Trigger Source: CH1, CH2
Trigger Coupling: AC, DC
Input impedance: 1MΩ/20pF
Max Input Voltage: 400V (peak)
Cursor Measurement Voltage: and time; Delta (CH1-CH2)
True RMS MultiMeter Functions
AC/DC Voltage: 400mV, 4V, 40V, 400V
AC/DC Current: 40mA, 300mA, 20A
Resistance: 400Ω, 4kΩ, 40kΩ, 400kΩ, 40MΩ
Capacitance: 51.2nF to 100μF
Diode and Continuity: Yes
PC Interface USB cable
Power Supply: 6 hours Li-ion rechargeable battery; AC Adaptor/Charger
Dimensions/Weight: 7 x 4.4 x 1.6" (180 x 113 x 40mm) / 24.3oz (690g)
ExtechManufacturerU.S.A
Warranty: 12months
Discontinued
