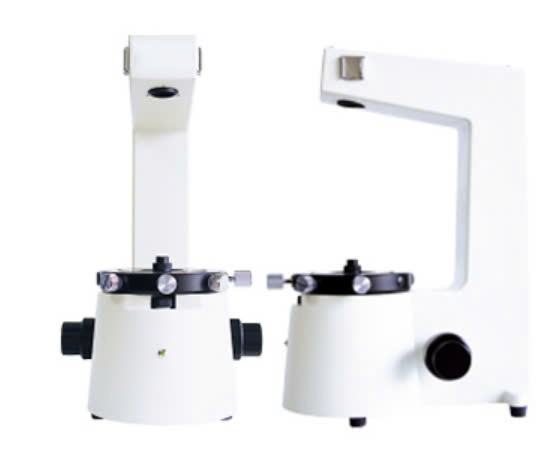

Kyoritsu Electric CS-A1100 Eccentricity measuring device (>φ3mm, ±3mm ~ đến ±∞)

Format: Transmission type eccentricity measuring device

Applications: Eccentricity measurement (centering accuracy measurement), centering (lens bonding work)

Lens to be measured: Convex lenses, concave lenses, laminated lenses

Measurement range: Lens effective diameter φ3mm or more, back focus ±3mm or more to ±∞　*

USB Camera: Black and white 1/2 inch USB camera

Power supply: AC adapter, Input AC100V-240V 50/60Hz, Output DC12V1.5A

Size: 333(H)×255(D)×155(W)mm (main unit only)

Mass: 4kg (main unit only)

Standard components: Main unit, dedicated analysis software (ASOPT1 Ver.2), AC adapter, dust cover, lens holder (for φ15 sample lens), correction lens

Special accessories: Standard three-jaw stage (φ15 to φ76 mm), large three-jaw stage, motorized rotating stage (RS-8 type, RS-12 type), customized keyboard, UV fiber holder
