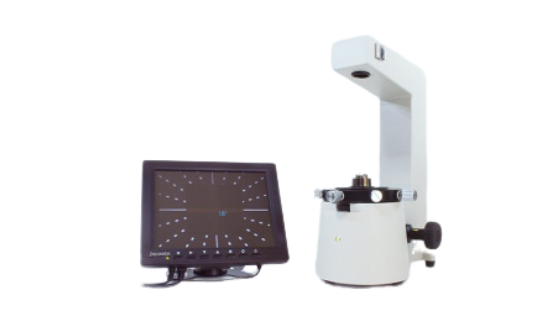

Kyoritsu Electric CS-A3000 Eccentricity measuring device (>φ3mm, ±3mm ~ ±∞)

Measurement method: Transmission type decentering measurement

Measurement range: Lens effective diameter: φ3mm or more, back focus: ±3mm or more to ±∞

*A correction lens may be required.

USB Camera: Black and white 1/2 inch USB camera

Power supply: AC adapter, Input AC100V-240V 50/60Hz, Output DC12V 1.5A

Size: 333(H) x 255(D) x 155(W) mm (main unit only)

Mass: 4kg (main unit only)

Standard components: Main unit, PC, touch panel monitor, dedicated analysis software (ASOPT3000), AC adapter, dust cover, correction lens
