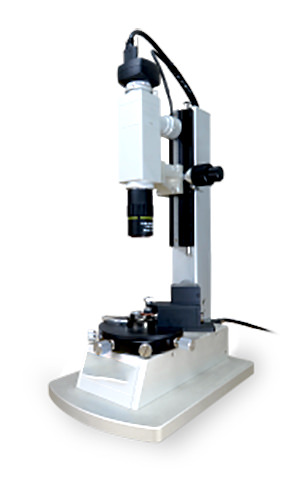

Kyoritsu Electric US-A1000 Ultra-small lens eccentricity measuring machine (R=+25mm ~ -145mm (10X), R=+80mm ~ -135mm (f=100mm))

Model: Reflection decentering measurement, transmission decentering measurement, centering

Measurement method Reflective/transmissive

Measurement range

Reflection:

R=+25mm to -145mm (using 10X objective lens)

R=+80mm (using adapter) to -135mm (using f=100mm objective lens)

Transmission:

f=-25mm to f=+145mm (using 10X objective lens)

f=-80mm (using adapter) to f=+135mm (using f=100mm objective lens)

Lens diameter:

Reflection: φ0.5 mm to

Transmission: φ1.0 mm to

Lens rotation: φ0.5mm～φ10mm RS-13(recommended)

φ10mm～φ70mm RS-12(recommended)

Objective lens: 10X ultra long working lens, f=100mm objective lens

Minimum Reading Reflection measurement: Every 1μ and every 1 second

Transmission measurement: Every 1 second

power supply: AC adapter, input ACV100 to AC240V, output DC12V　

size: Width 180mm Depth 280mm Height 400mm

weight: 6.0Kg
