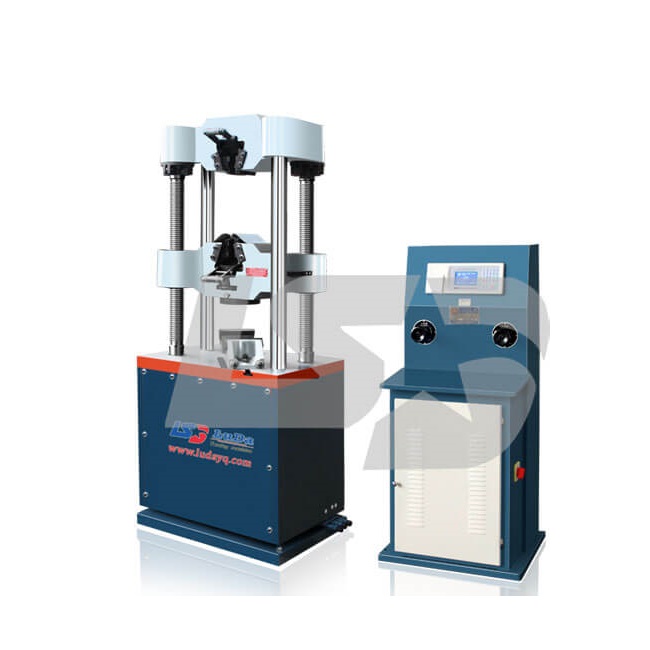

Ludatest WE-1000B Digital Hydraulic Universal Testing Machine (1000kN)

Description:

Digital hydraulic universal testing machine is mainly used for tensile, compression, bending and shearing tests of metal, non-metal, compossite and products. It can also be tested and processed according to various standards provided by GB, ISO, JIS, ASTM, DIN. Widely used in aerospace, mechanical manufacturing, wire and cable, rubber and plastics, building materials and other industries, material inspection, and analysis are the scientific research institute, colleges and universities, industrial and mining enterprises, technical supervision, commodity inspection and arbitration and other departments of the ideal testing equipment.

Specification:

Max Test Force: 1000 kn

Measure Range: 5-100 %

Relative Error Value: ±1/±0.5 %

Max Tensile Space: 610 mm

Max Compression Space: 510 mm

Piston Stroke: 170 mm

Size of Upper and Lower Platen: Φ220, Φ230 kw

Voltage: AC220/AC380V±10% 50Hz

Machine Size: 950*640*2300mm

Net Weight: 2600 kg
