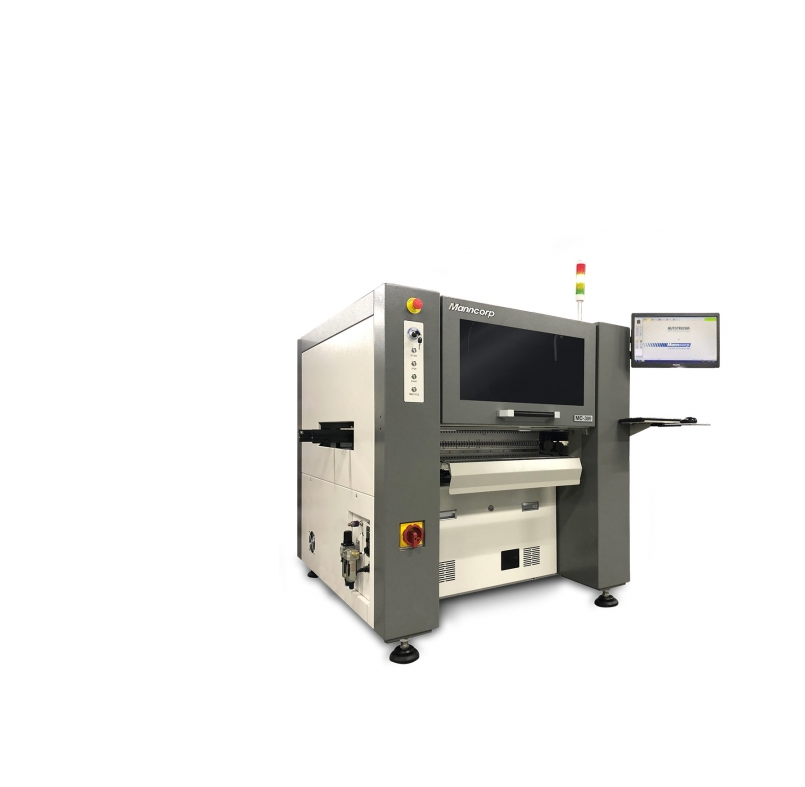

Manncorp MC-389 High Speed High Mix Pick and Place

Manufacturer: Manncorp - US

Model: MC-389

Origin: China

Warranty: 12 months

Placement Specifications

Number of Placement Heads: 3

Placement Rate (IPC-9850)*: 10,500 CPH

Placement Accuracy: 30 µm, 3 Sigma

Minimum Component Size: 0201 (01005 optional)

Maximum Component Size: 100 mm x 150 mm (3.94" x 5.9")

Minimum Component Lead Pitch: 0.3 mm (0.012")

BGA/CSP Placement Capability: Yes - Standard

Alignment Method: Dual-Vision Alignment System

Pick Up Specifications

Tool Changer: Included

Number of Tools: 15

Accepts Additional Tool Changers: Yes

Integral Vacuum: Yes

PCB Specifications

PCB Loading Method: Manual loading in batch / standalone configuration (standard). Single-stage and 3-stage inline conveyors optional.

Max. Placement Area: 650 mm x 380 mm (25.6" x 15") with conveyor; 650 mm x 460 mm (25.6" x 18.1") without conveyor

Fiducial Recognition/ Coordinate Correction: Yes

Bad Mark Detection: Yes

Feeder Capacity

Maximum Number of Feeder Ports: 96 with inline conveyor; 160 batch configuration with feeders on four sides

Maximum Number of Waffle Trays: Dependant on PCB size

Programming

Operating System: Windows® Based

PC, Keyboard, Mouse: Yes

Monitor Flat LCD

Teaching Camera: Yes

Numeric Data Entry: Yes

CAD Download: Yes

Step and Repeat for Matrix Boards: Yes

Bar Code Reader for Feeders & Packaging: Yes

MIS and Optimization Functions: Yes

Off-Line Programming: Yes

Dispenser Specifications

Dispensing Head: Optional

Dispense Method: Time/Pressure

Dot Size / Placement Speed: Down to 0.5 mm / Up to 6,000 dots./hr

Mechanical Specifications

X-Y Axis Drive Mechanism: Ball Screw

X-Y Axis Drive Motors: AC Servo

X-Y Axis Encoding: Linear

X-Y Axis Resolution: 0.005 mm (0.0002")

Z Axis Drive Motor: AC Servo

Z Axis Encoding: Rotary

Z Axis Resolution: 0.02 mm (0.0008")

Θ Axis Drive Motor: DC Servo

Θ Axis Encoding: Rotary

Θ Axis Resolution: 0.045°

Θ Axis Range of Motion: 360°

Physical Specifications

Overall Dimensions(Approx. L x W x H): 1300 mm L x 1420 mm W x 1460 mm H (51" x 56" x 57")

Approximate Net Weight: 1100 Kg (2425 lbs.)

Facility Requirements

Standard Voltage: 220 VAC, 50/60 Hz

Air Pressure: 75 psi, 4 CFM

Service and Support

Remote Diagnostics: Ethernet

Warranty (Major Components): 1 Year
