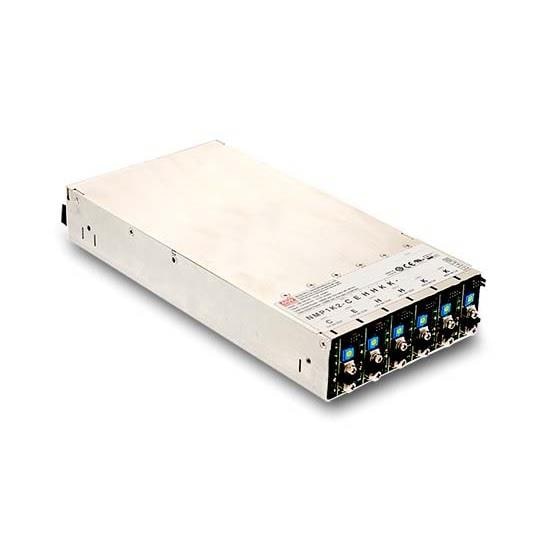

MEAN WELL NMP1K2-KECEKK-00 Modular Power Supply 1380W Medical Modular Power Supply

Width: 127 mm

Height: 41 mm

Length: 250 mm

Industry: Medical

Approvals: EN60601-1

Compliance: EN60601-1

Efficiency: 88.5 %

Unit Weight: 2 kg

Output Power: 1.2 kW

Input Voltage: 264 VAC, 370 VDC

Mounting Style: Panel

Input Frequency: 63 Hz

Load Regulation: Regulated

Number of Outputs: 6 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 5 A

Output Current-Channel 2: 20 A

Output Current-Channel 3: 36 A

Output Current-Channel 4: 20 A

Output Current-Channel 5: 5 A

Output Current-Channel 6: 5 A

Output Voltage-Channel 1: 48 V

Output Voltage-Channel 2: 12 V

Output Voltage-Channel 3: 5 V

Output Voltage-Channel 4: 12 V

Output Voltage-Channel 5: 48 V

Output Voltage-Channel 6: 48 V

Operating Temperature Range: - 30 C to + 70 C

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 30 C
